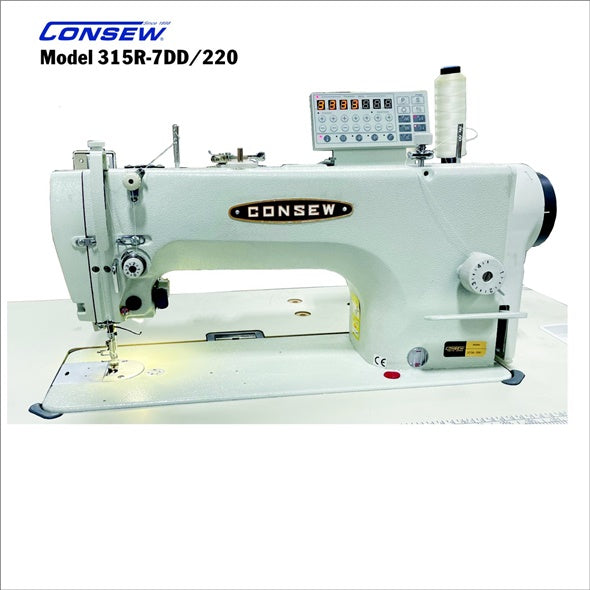

Consew 315R-7DD/220 Single Needle Needle Feed Industrial Sewing Machine

Consew 315R-7DD/220 Single Needle Needle Feed Industrial Sewing Machine

315R-7DD/220

Direct Drive | Automatic Functions | Specialized Needle Feed for Precise Plying

$1,499.95
$1,499.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 315R-7DD/220

is a high-speed, high-precision industrial lockstitch machine designed for the most demanding sewing tasks. Unlike standard drop-feed machines, this model features a Needle Feed mechanism. The needle moves in synchronization with the feed dog, providing superior traction and ensuring that multiple layers of material—including slippery or uneven fabrics—are fed perfectly without shifting or puckering.

Equipped with an integrated 220V Direct Drive Servo Motor, this machine offers silent operation, instant needle response, and a suite of Automatic Functions (Trimming, Back-tacking, and Foot Lift) that maximize production efficiency.



  • Advanced Needle Feed Mechanism: The needle and feed dog move together to prevent "ply-shifting," making it ideal for sewing slippery synthetics, velvet, and multi-layered garments.

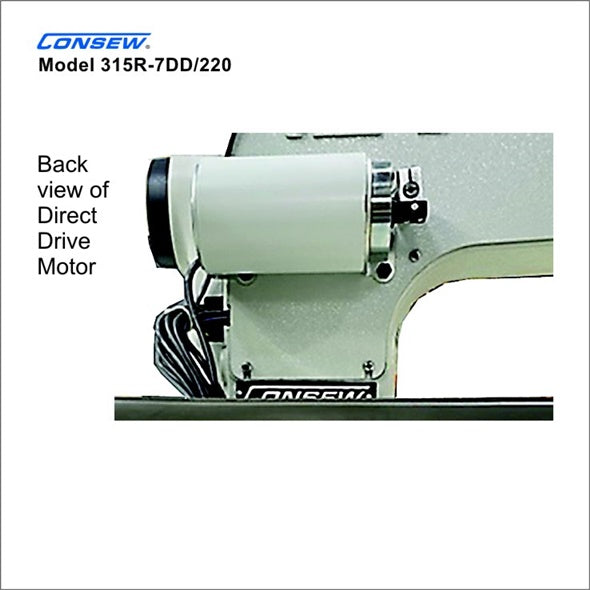

  • Integrated Direct Drive Motor (220V): The motor is mounted directly to the machine head, eliminating the need for a belt. This provides 70% energy savings, lower noise, and zero vibration.
  • Fully Automatic Productivity: Features Automatic Thread Trimming, Automatic Reverse/Back-tacking, and an Automatic Presser Foot Lift to streamline your workflow.
  • Digital Control Panel: Easily program stitch counts, back-tack cycles, and set your maximum speed with the high-visibility integrated panel.
  • Semi-Dry Lubrication: Engineered to provide consistent oiling to the internal components while minimizing the risk of oil stains on your finished garments.
  • Electronic Needle Positioner: Automatically stops the needle in the "up" or "down" position for easy cornering and fabric removal.

MACHINE SPECIFICATIONS:

  • Speed, Max. (S.P.M.): 3000 *Speed depends on thread, material and operation.
  • Presser Foot Lift: By Hand- 5/16" (8 mm) / By Knee- 5/8" (16 mm)
  • Needle Bar Stroke: 1-29/64" (37 mm)
  • Stitch Length, Max: 3.6 s.p.i. (7 mm)
  • Work Space: 10-1/4" x 4-3/4" (260 x 120 mm)
  • Needle: 135 x 17
  • Pre-wound Bobbin: M

      The 315R-7DD is the professional choice for:

      • Slippery & Technical Fabrics: Silks, satins, rayons, and light synthetics.
      • Precision Garment Assembly: Shirts, blouses, trousers, and specialized sportswear.
      • Quilting & Padded Materials: Ensuring even feeding across thick, multi-layered sections.
      • High-Volume Factories: Where automatic trimming and foot lifting are required for maximum throughput.

      DOWNLOADS:

      U.S. WARRANTY:

      90 Days labor on defects in materials and workmanship.

      ** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

      DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

      JUKI DDL-8700 FAQs

      What kind of needles do you use in the DDL-8700?

      The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

      Where does the machine oil go?

      A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

      What kind of oil does this machine require?

      You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

      What size table can I get with this machine?

      Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

      Does the DDL 8700 make buttonholes?

      No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

      THE ADVANTAGES OF A SERVO MOTOR

      THE ADVANTAGES OF A SERVO MOTOR

      Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

      They use up to 90% less power than clutch motors

      They use up to 90% less power than clutch motors

      They are 1/3 lighter than clutch motors

      They are 1/3 lighter than clutch motors

      With a flick of the switch, you can reverse motor rotation

      With a flick of the switch, you can reverse motor rotation

      No parts to wear out or adjust

      No parts to wear out or adjust

      No matter how hard you press the foot pedal, the configured speed remains the same.

      No matter how hard you press the foot pedal, the configured speed remains the same.
