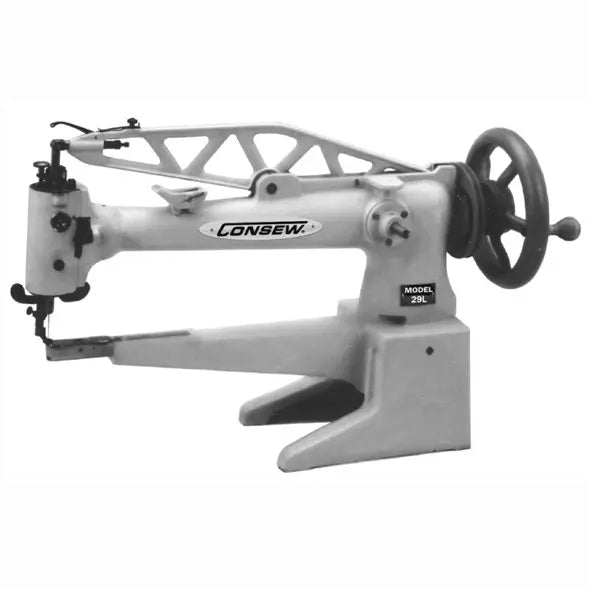

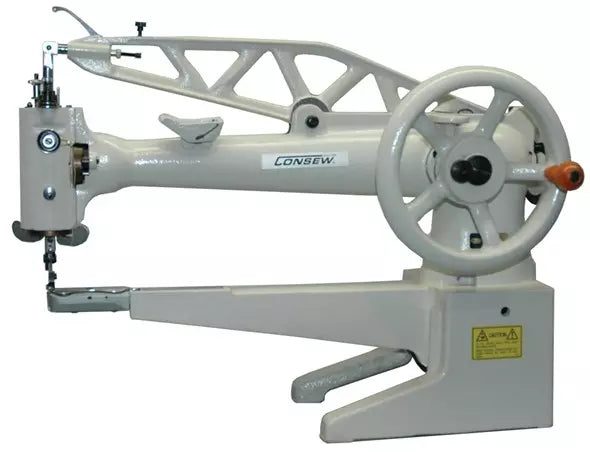

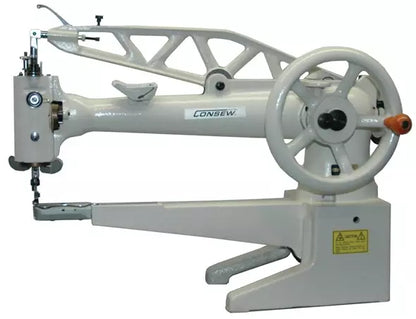

Consew 29BL Single Needle Cylinder Arm Shoe Repair & Mending Industrial Sewing Machine

Consew 29BL Single Needle Cylinder Arm Shoe Repair & Mending Industrial Sewing Machine

29BL

Available in 12" (29BL) and 18" (29BL-18) Extra-Long Arm Models

$2,195.00
$2,195.00 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 29BL Series

is the ultimate "Patcher" machine, specifically engineered for the shoe repair industry and intricate leather mending. Its standout feature is a 360-degree universal revolving presser foot, which allows the operator to stitch in any direction—forward, backward, or sideways—simply by turning the directional wing nut. Whether you are patching a boot heel, repairing a handbag lining, or stitching a leather jacket sleeve, the 29BL provides the deep reach and maneuverability that no other industrial machine can offer.

Why Choose the 29BL over a Standard Walking Foot?

A standard walking foot machine requires you to move the material to change directions. On a shoe or a tall boot, this is often physically impossible. The Consew 29BL solves this by moving the stitching direction instead. It is a specialized tool that pays for itself by allowing you to accept repair jobs that other shops have to turn down

The "Patcher" is the most versatile machine in a cobbler's workshop:

  • Shoe & Boot Repair: Patching uppers, replacing elastics, and repairing internal linings.
  • Handbags & Purses: Fixing zippers, gussets, and strap attachments in awkward corners.
  • Apparel Repair: Mending leather jacket elbows, sleeves, and pockets.
  • Specialty Goods: Repairing sports equipment, gloves, and narrow equestrian tack.
  • Orthotics: Custom stitching for orthopedic footwear and braces.
  • 360° Universal Feed: The revolving foot allows you to change the direction of your stitch without rotating the workpiece—essential for tight spaces and internal repairs.
  • Small Cylinder Arm: The ultra-slim arm is designed to reach deep into the toes of shoes, boots, and the narrow sleeves of leather garments.
  • Variable Arm Lengths: Choose the standard 12-inch (29BL) for general repairs or the extra-long 18-inch (29BL-18) for deep-reach items like tall riding boots.
  • Manual or Motorized Operation: Can be operated by hand-crank for total precision or mounted to a stand with a motor for higher production speeds.
  • Versatile Material Handling: Perfectly suited for light to medium-heavyweight leathers, elastics, and vinyl.
  • Adjustable Stitch Length: Easily transition between different stitch densities depending on the repair type.
  • Stitch Type: 301 Lockstitch
  • Max Sewing Speed: 500 SPM (Stitches Per Minute)
  • Max Stitch Length: 5 s.p.i. (5mm)
  • Cylinder Arm Lengths: 12-1/4" (311mm) or 18" (457mm)
  • Cylinder Arm Diameter: 1-1/8" (28.5mm) at the tip
  • Presser Foot Lift: 1/4" (7mm)
  • Needle System: 29 x 3 (DI x 3)
  • Bobbin Type: Small Cylinder Bobbin (Part #8222)
  • Feed Type: 360° Revolving Top Feed

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
