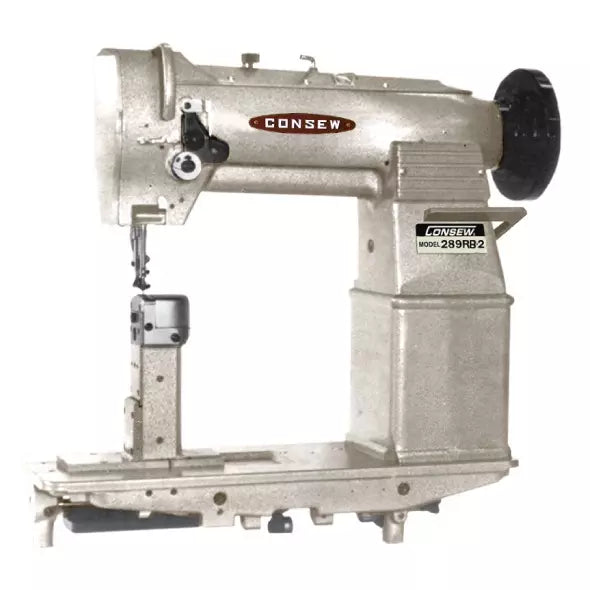

Consew 289RB-2 High Speed, Post Bed, 1 Needle, Drop Feed, Needle Feed, Walking Foot, Alternating Presser Feet, Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew 289RB-2 High Speed, Post Bed, 1 Needle, Drop Feed, Needle Feed, Walking Foot, Alternating Presser Feet, Lockstitch Industrial Sewing Machine With Table and Servo Motor

289RB-2

Consew 289RB-2 High Speed, Post Bed, 1 Needle, Drop Feed, Needle Feed, Walking Foot, Alternating Presser Feet, Lockstitch Industrial Sewing Machine With Table and Servo Motor

$4,899.95
$4,899.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor

Consew 289RB-2 High Speed, Post Bed, 1 Needle, Drop Feed, Needle Feed, Walking Foot, Alternating Presser Feet, Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew 289RB-2 High Speed, Post Bed, 1 Needle, Drop Feed, Needle Feed, Walking Foot, Alternating Presser Feet, Lockstitch Industrial Sewing Machine With Table, Legs, Servo Motor and LED Lamp

Centra-Lube Semi-Automatic Lubrication System, Large Vertical Axis Rotary Hook and Bobbin, Reverse Feed, Safety Clutch

MACHINE FEATURES:

  • Centra-Lube® semi-automatic lubrication system
  • Oil fed take-up
  • Safety clutch prevents the hook from being damaged
  • Large bobbin allows for longer operation
  • Large vertical axis hook allows for use of thick thread and therefore ornamental stitching can be obtained
  • Compound feed, walking foot mechanism assures even feeding of material
  • Reverse stitching
  • Simple adjustment permits raising and lowering of the center foot which allows for sewing different thicknesses of material

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Walking Foot
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 2400
  • Clearance Under Presser Foot: 25/64" (10mm)
  • Stitch Length: 4 s.p.i.i (6mm)
  • Needle: 135 x 17
  • Bobbin: Pre-Wound S and U
  • Bed Size: 7" 20-3/8" (177mm x 518mm)
  • Stitch Type: 301
  • Needle Bar Stroke: 1 5/16" (33mm)
  • Hook: 14005
  • Post Height: 7" (178mm)
  • Work Surface: 2 1/8" x 2" (54mm x 51mm)

MACHINE APPLICATION:

  • For sewing medium to heavy weight fabrics, leather, canvas, vinyl, synthetics and various coated and laminated materials
  • For stitching uneven, hollow, tubular and curved articles
  • Designed for stitching such products as boots, shoes, gloves, luggage, handbags, overalls, raincoats, bags, umbrellas, awnings, covers, tarpaulins, tents, sports and camping equipment, wearing apparel, outdoor clothing, etc.
  • Suitable for edge stitching operations, and top stitching

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Consew 289RB-2 Lockstitch Industrial Sewing Machine

Product Showcase-Consew 289RB-2 Lockstitch Industrial Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
