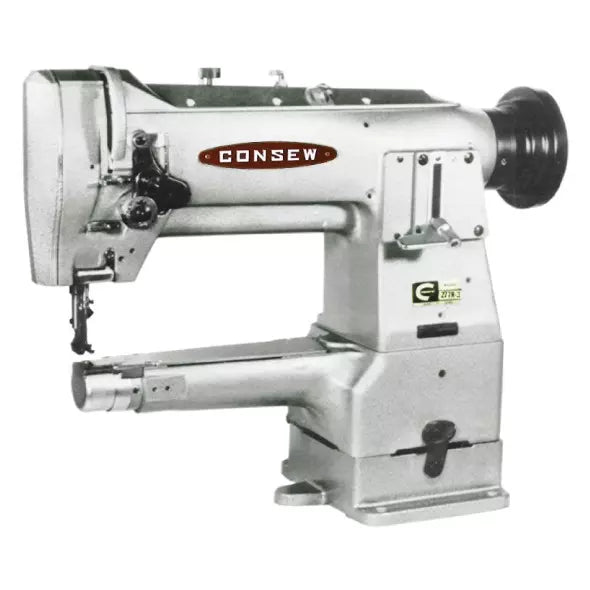

Consew 277RB-1 Heavy Duty Narrow Cylinder Bed 1 Needle Drop Feed, Needle Feed Compound Feed Alternating Presser Feet Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew 277RB-1 Heavy Duty Narrow Cylinder Bed 1 Needle Drop Feed, Needle Feed Compound Feed Alternating Presser Feet Lockstitch Industrial Sewing Machine With Table and Servo Motor

277RB-1

This complete unit is paired with a professional industrial table and a high-torque Servo Motor, providing whisper-quiet operation and precise speed control for delicate or high-volume production.

$3,449.99
$3,449.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 277RB-1

is a high-performance, single-needle lockstitch machine specifically designed for sewing tubular and curved objects. Its narrow cylinder bed (1-13/16" diameter) allows for easy maneuvering of small items and tight corners that flatbed machines cannot reach. Featuring Triple Feed (Compound Feed)—which combines drop feed, needle feed, and alternating presser feet—it ensures perfectly synchronized material movement even when sewing heavy leathers or multi-layered fabrics.

  • Narrow Cylinder Bed: 46mm diameter bed is ideal for sewing bags, sleeves, cuffs, and small leather goods.
  • Triple Feed (Compound Feed): The needle, feed dog, and presser feet move in unison to prevent material shifting and ensure uniform stitch lengths on heavy layers.
  • Large Horizontal Rotary Hook: Equipped with a large capacity bobbin to reduce the frequency of thread changes.
  • Safety Clutch: Automatically disengages to prevent damage to the hook and gears in the event of a thread jam or needle strike.
  • Adjustable Speed Servo Motor: Provides 90% energy savings compared to clutch motors and allows for precise control from stitch-by-stitch to full speed.
  • Built-in Reverse: Easy-access lever for quick back-tacking and seam reinforcement.
  • Max Speed: 2,200 SPM (Stitches Per Minute)
  • Stitch Length: Max 4.2 s.p.i. (6mm)
  • Needle System: 135 x 17
  • Cylinder Diameter: 1-13/16" (46mm)
  • Clearance Under Foot: 1/2" (13mm)
  • Needle Bar Stroke: 1-5/16" (33.2mm)
  • Work Space: 10-1/4" (258mm)
  • Bed Size: 15-3/4" (400mm)
  • Stitch Type: 301 Lockstitch
  • Leather Goods: Wallets, handbags, belts, and luxury leather accessories.
  • Curved/Tubular Items: Sleeves, cuffs, caps, and footwear.
  • Outdoor & Sporting Gear: Golf bags, backpacks, and safety harnesses.
  • Upholstery: Trimming and edging for automotive and marine interiors.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
