Consew 277R-3 Heavy Duty Narrow Cylinder Bed 1 Needle Drop Feed Needle Feed Compound Feed Alternating Presser Feet Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew 277R-3 Heavy Duty Narrow Cylinder Bed 1 Needle Drop Feed Needle Feed Compound Feed Alternating Presser Feet Lockstitch Industrial Sewing Machine With Table and Servo Motor

277R-3

This complete unit includes a professional industrial table and a high-torque Servo Motor, delivering silent operation and the precise speed control required for high-detail leatherwork and heavy-duty assembly.

$3,749.99
$3,749.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

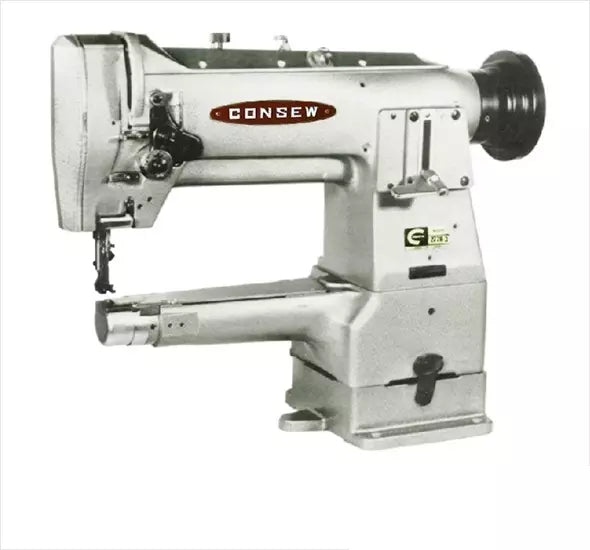

Consew 277R-3

is a premier single-needle lockstitch machine engineered for sewing tubular and curved items. Its narrow 1-13/16" diameter cylinder bed provides the clearance necessary for maneuvering small items like bags, shoes, and cuffs. Utilizing a Triple Feed (Compound Feed) system—combining drop feed, needle feed, and alternating presser feet—it ensures perfectly synchronized feeding of heavy leathers and multi-layered materials without ply-shifting.

  • Narrow Cylinder Bed: 46mm diameter allows for easy handling of small-diameter tubular items and tight curves.
  • Triple Feed (Compound Feed): The needle, feed dog, and presser foot work in unison to handle heavy, slippery, or multi-layered fabrics with ease.
  • Large Rotary Hook & Bobbin: Designed for high-capacity thread use, reducing downtime for bobbin changes on thick materials.
  • Safety Clutch: Integrated mechanism protects the hook from damage by disengaging automatically in the event of a thread jam.
  • High Presser Foot Lift: 1/2" clearance allows for the effortless insertion of thick leather or foam-backed materials.
  • Brushless DC Servo Motor: Provides 90% energy savings over clutch motors and allows for stitch-by-stitch precision.
  • Max Speed: 2,200 SPM (Stitches Per Minute)
  • Stitch Length: Max 4.2 s.p.i. (6mm)
  • Cylinder Diameter: 1-13/16" (46mm)
  • Clearance Under Foot: 1/2" (13mm)
  • Needle System: 135 x 17
  • Work Space: 10-1/4" (258mm)
  • Bed Size: 15-3/4" (400mm)
  • Lubrication: Semi-Automatic (Manual Oilings with specialized reservoirs)
  • Small Leather Goods: Wallets, handbags, belts, and luxury accessories.
  • Tubular Manufacturing: Sleeves, cuffs, caps, and headwear.
  • Specialized Footwear: Shoes, boots, and slippers.
  • Technical Gear: Backpacks, golf bags, and orthopedic supports.
  • Upholstery: Trimming and binding for automotive and marine interiors.

DOWNLOADS

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
