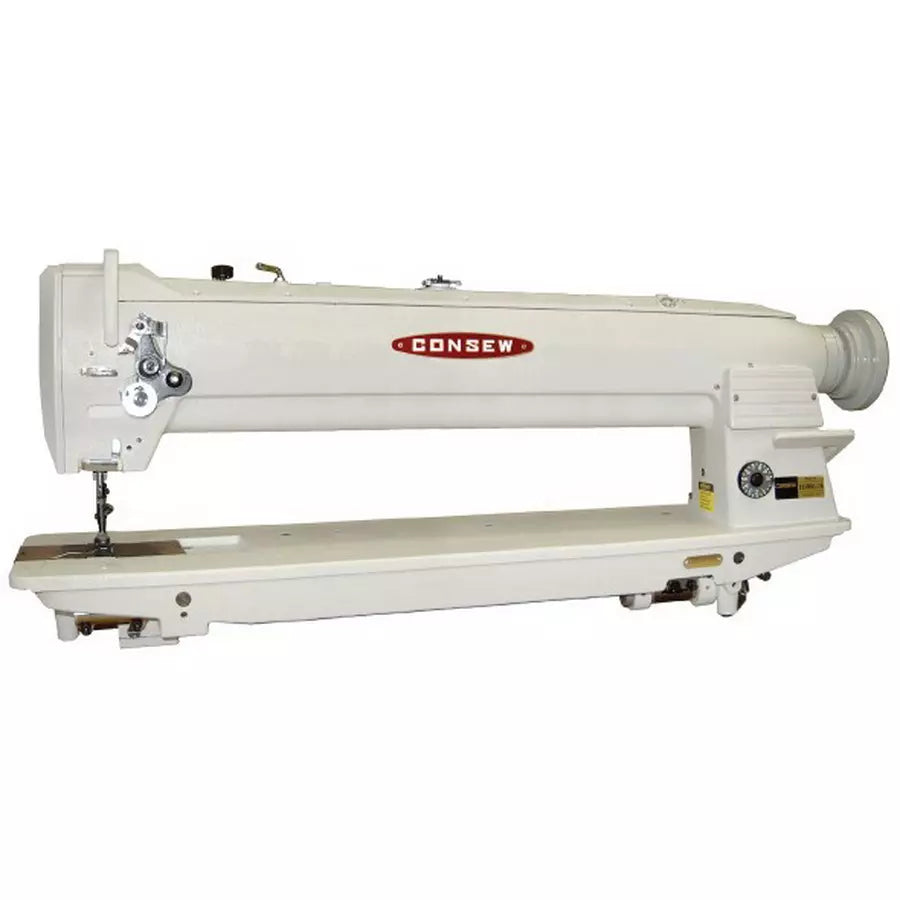

Consew 255RBL-25 25" Long Arm Heavy-Duty Single Needle Walking Foot Industrial Sewing Machine

Consew 255RBL-25 25" Long Arm Heavy-Duty Single Needle Walking Foot Industrial Sewing Machine

255RBL-25

Alternating (Walking) Presser Feet Lockstitch Machine Industrial Sewing Machine  Comes With Table, Legs, Servo Motor and LED Lamp

$8,499.99
$8,499.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 255RBL-25

is an extra-long-arm industrial machine designed to handle the largest and heaviest sewing projects with ease. Featuring a massive 25-inch horizontal workspace, this machine allows for the maneuvering of bulky materials like sails, tents, and truck covers that would be impossible on a standard machine. Its Triple Feed (Compound Feed) system ensures that multiple layers of thick or slippery fabric are fed evenly, providing consistent stitch quality across leather, canvas, and heavy synthetics.

  • Massive 25" Workspace: The extended arm provides 635mm of clearance to the right of the needle, perfect for quilting large panels or sewing oversized upholstery.
  • Triple Feed (Compound Feed): Synchronized drop feed, needle feed, and alternating (walking) presser feet prevent material layers from shifting or puckering.
  • Large Vertical Axis Hook: Equipped with an extra-large bobbin capacity to reduce thread changes during long, continuous sewing runs.
  • High Presser Foot Clearance: With up to 16mm of lift, this machine easily accommodates thick "sandwiches" of foam, leather, and heavy canvas.
  • Safety Clutch Mechanism: Protects the machine from timing errors by automatically disengaging the hooks in the event of a thread jam or needle strike.
  • Automatic Lubrication: A built-in oil pump system ensures the machine remains lubricated during high-speed operation, extending the lifespan of internal parts.
  • Energy-Efficient Servo Motor: Includes a 750W high-torque digital servo motor for silent operation, precise speed control, and significantly reduced power consumption.
  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Walking Foot
  • Workspace: Long Arm
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 2200
  • Clearance Under Presser Foot: 9/16" (14mm)
  • Stitch Length: 2 1/2 s.p.i. (10mm)
  • Work Space: 25" (640mm)
  • Needle: 135 x 17
  • Bobbin: Pre-Wound U
  • Bed Size: 7" 28-1/4" (177mm x 718mm)
  • Stitch Type: 301
  • Needle Bar Stroke: 1 5/16" (33mm)
  • Hook: 15040

The 255RBL-25 is specifically built for oversized, heavy-duty manufacturing:

  • Marine & Outdoor Gear: Boat covers, sails, hot tub covers, and awnings.
  • Tents & Tarpaulins: Large-scale canvas shelters and truck side-curtains.
  • Upholstery: Sectional sofas, automotive carpets, and aircraft interiors.
  • Safety Equipment: Cargo slings, parachutes, and heavy-duty webbing.
  • Bags: Extra-large duffle bags and professional travel gear.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
