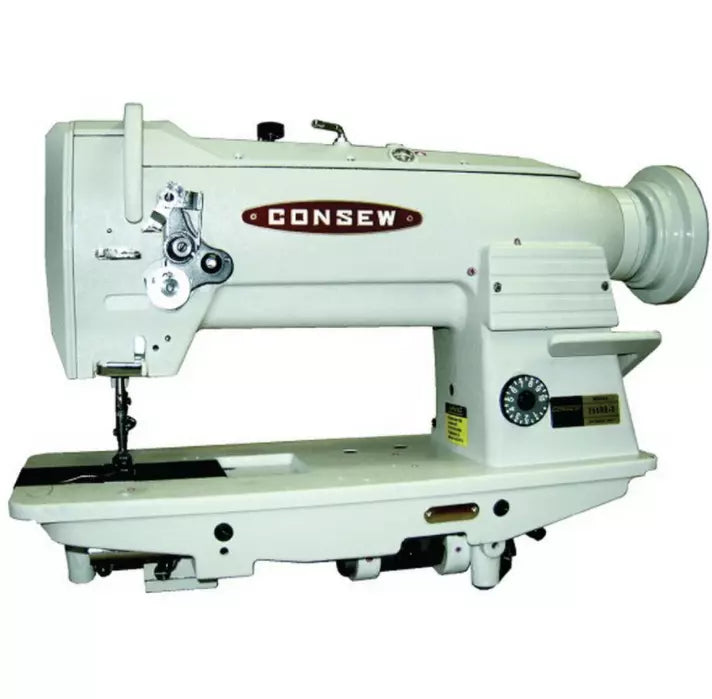

Consew 255RB-3 Triple Feed Heavy Duty Walking Foot Lockstitch Industrial Sewing Machine – Complete Set with Table & Servo Motor

Consew 255RB-3 Triple Feed Heavy Duty Walking Foot Lockstitch Industrial Sewing Machine – Complete Set with Table & Servo Motor

255RB-3

Walking Foot Heavy Duty Single Needle Triple Feed Drop Feed Needle Feed and Alternating (Walking) Presser Feet Lockstitch Sewing Machine With Table and Servo Motor

$2,999.95
$2,999.95 Market price: $3,999.00
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • More accessories

Consew 255RB-3

is a legendary workhorse in the industrial sewing world, renowned for its reliability in heavy-duty manufacturing. Featuring a true Triple Feed (Unison Feed) system, this machine ensures that even the most difficult-to-sew materials—like leather, vinyl, and canvas—are fed evenly without slippage. With its large "M" style bobbin and high-clearance foot lift, it is the go-to choice for upholstery, automotive interiors, and heavy apparel.

  • True Triple Feed Mechanism: Combines drop feed, needle feed, and alternating walking feet to keep multiple layers of heavy material perfectly synchronized.
  • Large "M" Style Bobbin: Equipped with a horizontal-axis extra-large hook and bobbin, providing significantly more thread capacity than standard machines to reduce downtime.
  • Safety Clutch Mechanism: Built-in safety clutch prevents the hook from being damaged in the event of a thread jam or needle strike.
  • High Presser Foot Clearance: A generous 14 mm lift allows for the easy insertion and removal of bulky materials and thick seams.
  • Adjustable Walking Foot Height: A convenient dial on top of the machine allows you to adjust the height of the walking foot climb to handle varying fabric thicknesses.
  • Modern Servo Motor: Includes a quiet, energy-efficient servo motor for precise speed control, which is essential for detailed leatherwork.
  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Walking Foot
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 2800
  • Clearance Under Presser Foot: 9/16" (14mm)
  • Stitch Length: 2-1/2 s.p.i. (10mm)
  • Work Space: 10 1/4" (258mm)
  • Needle: 135 x 17
  • Bobbin: Pre-Wound U
  • Bed Size: 7" 28-1/4" (177mm x 718mm)
  • Stitch Type: 301
  • Needle Bar Stroke: 1 5/16" (33mm)
  • Hook: 15040
  • Upholstery: Ideal for furniture, sofas, and heavy-duty decorative cushions.
  • Automotive & Marine: Perfect for car seats, convertible tops, boat covers, and sails.
  • Leather Goods: Efficiently handles belts, wallets, holsters, and heavy handbags.
  • Canvas & Vinyl: Suitable for awnings, tents, tarpaulins, and outdoor gear.
  • Technical Apparel: Used for tactical gear, backpacks, and safety harnesses.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h2><u>PARTS & ACCESSORIES for the CONSEW 255RB-3</u></h2>
<p><strong>Needles:</strong>&nbsp;<a href="https://www.goldstartool.com/sewing-machine-needles-135x17.htm" target="_blank">Sewing Machine Needles 135x17</a><br><strong>Bobbins:&nbsp;<a href="https://www.goldstartool.com/bobbin-consew-15041.htm" target="_blank"></a></strong><a href="https://www.goldstartool.com/bobbin-consew-15041.htm" target="_blank">Bobbin - Consew #15041</a><br><strong>Rotary Hook:&nbsp;</strong><a href="https://www.goldstartool.com/rotary-hook-consew-15040.htm" target="_blank">Rotary Hook - Consew #15040​</a><br><strong>Rotary Hook Base (bobbin case)</strong>:&nbsp;<a href="https://www.goldstartool.com/hook-base-consew-15040-2.htm" target="_blank">Hook Base - Consew #15040-2</a><a href="https://www.goldstartool.com/needle-plate-throat-plate-feed-dog-for-most-industrial-lockstitch-sewing-machines-combo.htm" target="_blank"><br></a><strong>Needle Bar:</strong>&nbsp;<a href="https://www.goldstartool.com/needle-bar-consew-16703.htm" target="_blank">Needle Bar - Consew #16703</a><strong><strong><br></strong></strong><strong>Complete Tension Bracket:&nbsp;</strong><a href="https://www.goldstartool.com/tension-bracket-complete-19421ca.htm" target="_blank">Complete Tension Bracket For Consew #19421CA</a></p>

PARTS & ACCESSORIES for the CONSEW 255RB-3

Needles: Sewing Machine Needles 135x17Bobbins: Bobbin - Consew #15041Rotary Hook: Rotary Hook - Consew #15040​Rotary Hook Base (bobbin case): Hook Base - Consew #15040-2Needle Bar: Needle Bar - Consew #16703Complete Tension Bracket: Complete Tension Bracket For Consew #19421CA

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Consew 255RB-3​ Lockstitch Sewing​ Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
