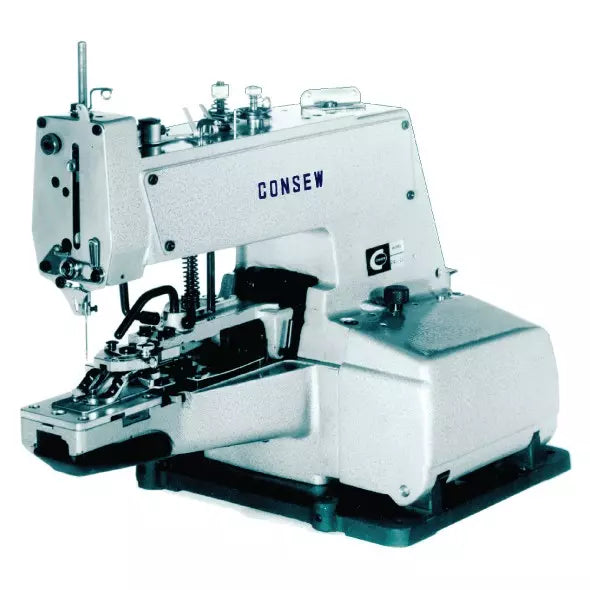

Consew 241-1TK Industrial Cylinder Bed Button Sewing & Tacking Machine – Single Needle Chainstitch with Complete Table & Servo Motor

Consew 241-1TK Industrial Cylinder Bed Button Sewing & Tacking Machine – Single Needle Chainstitch with Complete Table & Servo Motor

241-1TK

With: Vibrating Clamp, Single Pedal Operation, 8-16-32 Parallel Stitches, Two or Four Hole Button Sewing Operation

Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 241-1TK

is a high-performance, single-needle chainstitch machine specifically engineered for precision button sewing and heavy-duty tacking. Featuring a versatile cylinder bed design and a vibrating clamp, this machine handles 2-hole and 4-hole buttons with ease. Optimized for light-to-medium materials, it comes complete with an industrial table and an energy-efficient Servo motor, providing silent operation and superior speed control for professional garment manufacturing and drapery work.

  • Dual Functionality: Optimized as a high-speed tacker (Model 1TK) and button sewer, ideal for draperies, labels, and basting.
  • Precision Stitching: Features a vibrating clamp and a stitch range of 8, 16, and 32 parallel stitches without the need for cam changes.
  • One-Touch Versatility: Quickly switch between 2-hole and 4-hole button operations via a conveniently located finger-tip lever.
  • Automatic Scissor-Action Trimmer: Simultaneous cutting action with the last stitch ensures a clean finish, even with heavy cotton or synthetic threads.
  • Streamlined Operation: Automatic clamp lift upon completion of the sewing cycle for increased productivity.
  • Energy Efficient Servo Motor: Uses up to 90% less power than traditional clutch motors while offering adjustable speed control and silent operation.
  • Interchangeable Clamps: Easily adaptable for flat buttons, shank buttons, metal buttons, snap fasteners, and hooks-and-eyes (attachments sold separately).
  • Machine Type: Single Needle, Single Thread, Chainstitch (Type 101)
  • Bed Type: Cylinder Bed
  • Maximum Speed: 1,500 SPM (Stitches Per Minute)
  • Stitch Count: 8, 16, or 32 Parallel Stitches
  • Needle Bar Stroke: 1-59/64" (48 mm)
  • Needle System: 175 x 7
  • Looper: B-372-213
  • Max Clamp Lift: 1/2" (approx. 13 mm)
  • Motor: 110V Electronic DC Servo Motor
  • Apparel Manufacturing: Sewing two- and four-hole buttons on shirts, jackets, and light-to-medium weight clothing.
  • Home Goods: Specialized tacking for drapery pins, pleats, and window treatments.
  • Specialty Fasteners: Attaching snap fasteners, metal buttons, shank buttons, and hooks-and-eyes.
  • Branding & Labels: High-speed label tacking for garments and textile products.
  • Industrial Basting: Temporary and permanent tacking for various assembly stages.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
