Consew 241-1K Industrial Button Sewing & Tacking Machine – Single Needle Chainstitch with Table and Energy-Saving Servo Motor

Consew 241-1K Industrial Button Sewing & Tacking Machine – Single Needle Chainstitch with Table and Energy-Saving Servo Motor

241-1K

With: Vibrating Clamp, Single Pedal Operation, 8-16-32 Parallel Stitches, Two or Four Hole Button Sewing Operation

Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

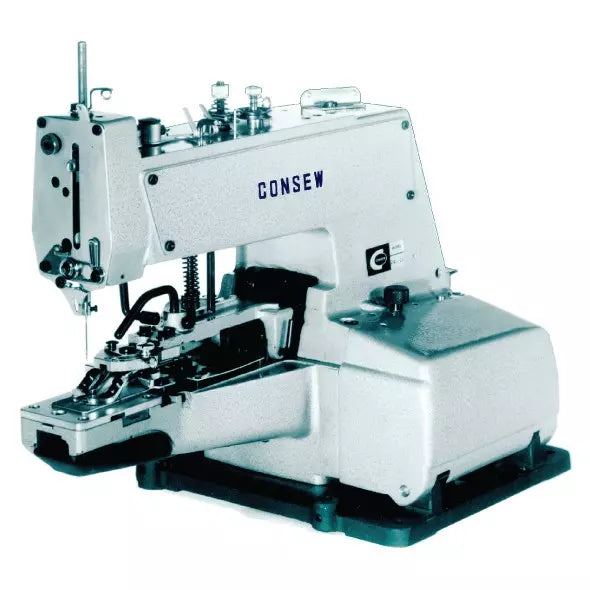

Consew 241-1K

is a heavy-duty, single-needle chainstitch industrial sewing machine designed for high-efficiency button sewing and light-to-medium tacking. Featuring a versatile cylinder bed and a vibrating clamp, this machine handles 2-hole and 4-hole buttons with a simple lever adjustment. Complete with a professional industrial table and a silent, energy-efficient Servo motor, the 241-1K is the industry standard for garment manufacturing, label tacking, and drapery work.

  • Dual-Function Versatility: Effortlessly sew 2-hole and 4-hole buttons or perform tacking for labels and draperies.
  • Lever-Action Switching: Quickly change between 2-hole and 4-hole operations via a convenient finger-tip lever—no cam changes required.
  • Adjustable Stitch Range: Select between 8, 16, or 32 parallel stitches to suit different garment requirements.
  • Automatic Scissor Trimmer: Integrated "scissor-action" thread trimmer cuts thread simultaneously with the last stitch for a clean finish.
  • Automatic Clamp Lift: Increases productivity by automatically lifting the clamp upon completion of the sewing cycle.
  • Vibrating Clamp System: Ensures precise button placement and secure stitching on light to medium-weight materials.
  • Servo Motor Advantage: Includes a 110V Servo motor that is 1/3 lighter than traditional clutch motors and uses up to 90% less power while providing silent, controllable speed.
  • Stitch Type: Single Thread Chainstitch (Type 101)
  • Maximum Speed: 1,500 SPM (Stitches Per Minute)
  • Bed Type: Cylinder Bed
  • Needle System: 175 x 7
  • Needle Bar Stroke: 1-59/64" (48 mm)
  • Stitch Pattern: 8, 16, or 32 Parallel Stitches
  • Looper Number: B-372-213
  • Motor Type: 110V Electronic DC Servo Motor
  • Weight: Approx. 90 lbs (Complete set)
  • Apparel Manufacturing: Ideal for attaching flat buttons, shank buttons, and metal fasteners to shirts, jackets, and uniforms.
  • Label Tacking: High-speed tacking for brand labels and care tags on finished garments.
  • Drapery & Home Decor: Reliable tacking for drapery pins, pleats, and basting operations.
  • Specialty Fasteners: Suitable for sewing snap fasteners, hooks-and-eyes, and other specialty hardware with appropriate attachments.

DOWNLOADS

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
