Consew 228R-WIG High-Speed Single Needle Post Bed Wig and Hat Industrial Sewing Machine

Consew 228R-WIG High-Speed Single Needle Post Bed Wig and Hat Industrial Sewing Machine

228R-WIG

This complete unit comes with a professional industrial table and a high-torque Servo Motor, allowing for silent operation and the stitch-by-stitch precision essential for delicate hair extensions and hat trim.

$2,199.95
$2,199.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • More accessories

Consew 228R-WIG

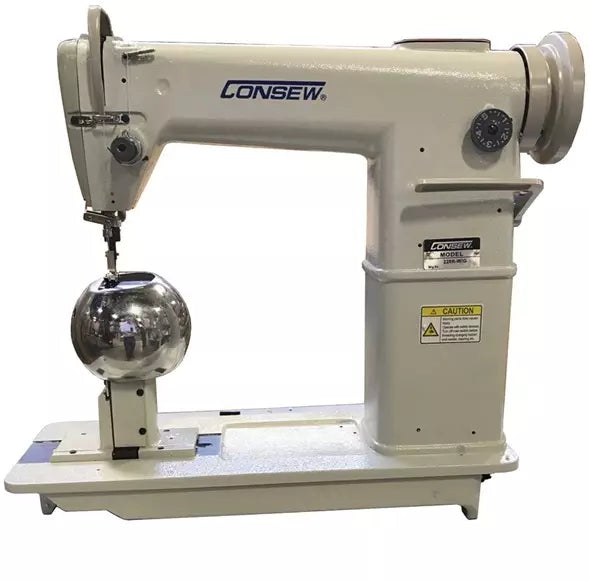

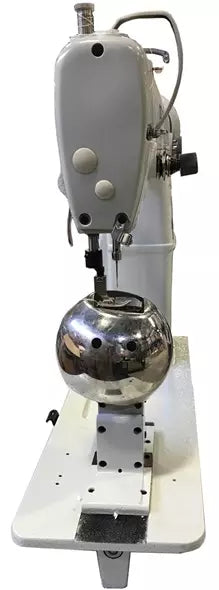

is a specialized high-speed industrial lockstitch machine uniquely engineered for the wig-making and millinery industries. Unlike standard post bed machines, the 228R-WIG features a special spherical needle area designed to navigate the tight curves and rounded surfaces of wigs, hairpieces, and hats.

Equipped with a 7-inch vertical post bed and Drop Feed mechanism, it provides the agility required for 3D assembly and intricate detail work.

  • Wig Manufacturing: Attaching hair extensions to caps and constructing hairpieces.
  • Millinery (Hats): Assembling and finishing structured hats, caps, and headpieces.
  • Spherical Items: Sewing small, rounded fabric or leather items that require a specialized work area.

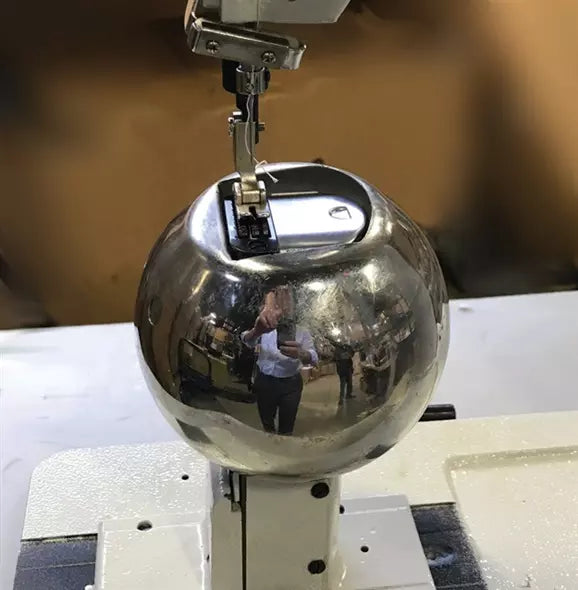

  • Special Spherical Needle Area: Designed specifically to handle rounded and spherical items such as wig caps and headwear without distorting the material.
  • 7" Vertical Post Bed: Provides the clearance and rotation space necessary for maneuvering complex, 3D curved shapes.
  • Vertical Axis Rotary Hook: Ensures reliable stitch formation and consistent performance during high-speed operation.
  • Reverse Feeding: Large, easy-to-operate lever for quick back-tacking and seam reinforcement.
  • High-Speed Productivity: Capable of reaching up to 3,000 SPM for high-volume manufacturing.
  • Energy-Efficient Servo Motor: Offers silent operation, 90% power savings, and precise speed control—perfect for beginners and experts alike.
  • Max Speed: 3,000 SPM (Stitches per Minute)
  • Stitch Length: Max 5 s.p.i. (5mm)
  • Post Height: 7" (178mm)
  • Clearance Under Foot: 15/64" (6mm)
  • Needle System: 135 x 7 (DP-F22/134S)
  • Needle Bar Stroke: 1-1/4" (32mm)
  • Bobbin Type: Pre-wound "G" Style
  • Stitch Type: 301 Lockstitch
  • Work Surface: 1-7/8" x 2" (48mm x 75mm)

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h2>ACCESSORIES for the CONSEW 228R-WIG</h2>
<p><strong>Needles:</strong> <a href="https://www.goldstartool.com/organ-industrial-sewing-machine-needles-134r-135x5-135x7.htm" target="_blank">DP-F22/134S (or 135x7)</a><br><strong>Bobbins:</strong> <a href="https://www.goldstartool.com/metal-bobbin-for-walking-foot-double-needle-industrial-sewing-machine-singer-203470.htm" target="_blank">Singer #203470</a><br></p>

ACCESSORIES for the CONSEW 228R-WIG

Needles: DP-F22/134S (or 135x7)Bobbins: Singer #203470

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
