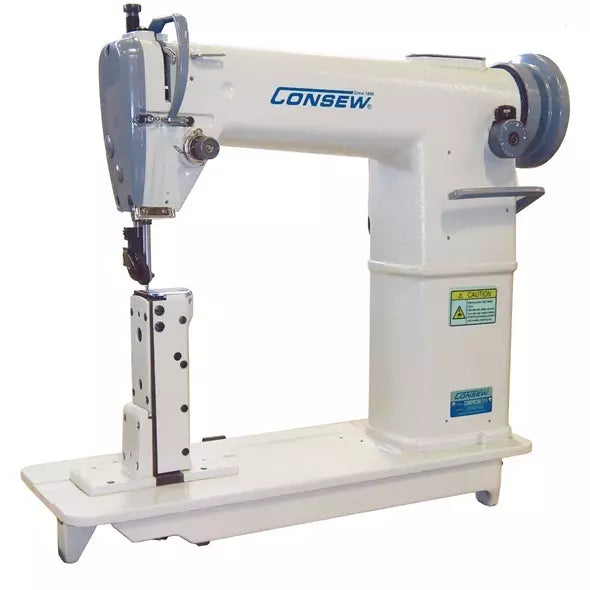

Consew 228R-11-1 High-Speed Single Needle Post Bed Industrial Sewing Machine

Consew 228R-11-1 High-Speed Single Needle Post Bed Industrial Sewing Machine

228R-11-1

This complete workstation includes a professional industrial table and a high-torque Servo Motor for silent, energy-efficient operation and exact speed control.

$1,999.95
$1,999.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • More accessories

Consew 228R-11-1

is a high-speed, single-needle lockstitch machine featuring a 7-inch vertical post bed. This specialized design is engineered for sewing three-dimensional, curved, and tubular articles that are difficult or impossible to maneuver on a standard flatbed machine.

Equipped with a precise Drop Feed mechanism, the 228R-11-1 is optimized for light to medium-weight materials, providing the agility needed for footwear, apparel, and accessory assembly.

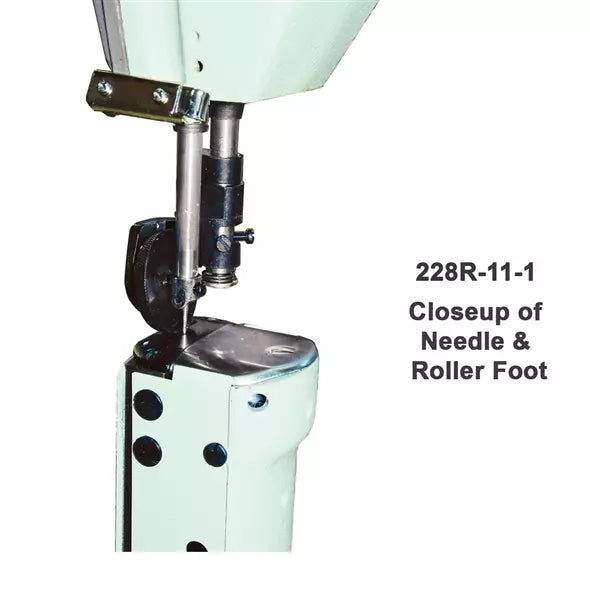

  • 7" Vertical Post Bed: Provides the necessary clearance to rotate and maneuver shaped items like shoes, boots, and hats.
  • High-Speed Performance: Delivers up to 3,000 stitches per minute, making it a reliable workhorse for high-volume production.
  • Vertical Axis Rotary Hook: Ensures consistent stitch quality and easy bobbin access for industrial-grade reliability.
  • Large Reverse Lever: Conveniently located for quick back-tacking and seam reinforcement.
  • Centra-Lube® System: Features semi-automatic lubrication and oil-fed take-up to ensure smooth operation and long machine life.
  • Adjustable Servo Motor: Provides 90% energy savings over clutch motors and allows for "stitch-by-stitch" precision on complex curves.
  • Max Speed: 3,000 SPM (Stitches Per Minute)
  • Stitch Length: Max 5 s.p.i. (5mm)
  • Post Height: 7" (178mm)
  • Clearance Under Foot: 15/64" (6mm)
  • Needle System: 135 x 5 (Standard)
  • Needle Bar Stroke: 1-1/4" (32mm)
  • Stitch Type: 301 Lockstitch
  • Work Surface: 2" x 2-11/16" (51mm x 68mm)
  • Footwear: Perfect for vamping, tipping, and assembling boots, shoes, and slippers.
  • Apparel: Ideal for sewing curved sections of raincoats, uniforms, and foundation garments.
  • Accessories: Constructing small bags, pouches, and specialized fabric cases.
  • Headwear: Precise assembly of caps, hats, and structured headgear.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h2><u>PARTS & ACCESSORIES for the Consew 228R-11-1</u></h2>
<p><strong>Needles:</strong> <a href="https://www.goldstartool.com/organ-industrial-sewing-machine-needles-134r-135x5-135x7.htm" target="_blank">Industrial Sewing Machine Needle System 134R / 135×5 / 135×7</a><br><strong>Bobbins:</strong> <a href="https://www.goldstartool.com/metal-bobbin-for-walking-foot-double-needle-industrial-sewing-machine-singer-203470.htm" target="_blank">Bobbin For Industrial Sewing Machine - 203470<strong><br></strong></a><strong><a href="https://www.goldstartool.com/bobbin-case-metal-class-95-singer-52237.htm" target="_blank"></a>Rotary Hook with&nbsp;Bobbin</strong>:<a href="https://www.goldstartool.com/shuttle-hook-with-bobbin-case-seiko-244521.htm" target="_blank">&nbsp;Shuttle Hook With Bobbin Case - Seiko #244521</a><br><strong>Thread Controller&nbsp;Spring</strong>:&nbsp;<a href="https://www.goldstartool.com/thread-controller-spring-consew-10953.htm">Thread Controller Spring - Consew #10953</a><a href="https://www.goldstartool.com/metal-bobbin-for-walking-foot-double-needle-industrial-sewing-machine-singer-203470.htm" target="_blank"></a><a href="https://www.goldstartool.com/metal-bobbin-for-walking-foot-double-needle-industrial-sewing-machine-singer-203470.htm" target="_blank"></a><a href="https://www.goldstartool.com/metal-bobbin-for-walking-foot-double-needle-industrial-sewing-machine-singer-203470.htm" target="_blank"></a><a href="https://www.goldstartool.com/metal-bobbin-for-walking-foot-double-needle-industrial-sewing-machine-singer-203470.htm" target="_blank"></a><a href="https://www.goldstartool.com/metal-bobbin-for-walking-foot-double-needle-industrial-sewing-machine-singer-203470.htm" target="_blank"><font color="#333333"><br></font></a><a href="https://www.goldstartool.com/metal-bobbin-for-walking-foot-double-needle-industrial-sewing-machine-singer-203470.htm" target="_blank"><br></a></p>

PARTS & ACCESSORIES for the Consew 228R-11-1

Needles: Industrial Sewing Machine Needle System 134R / 135×5 / 135×7Bobbins: Bobbin For Industrial Sewing Machine - 203470Rotary Hook with Bobbin: Shuttle Hook With Bobbin Case - Seiko #244521Thread Controller Spring: Thread Controller Spring - Consew #10953

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Consew 228R-11-1 Sewing Machine Setup Comparison- Goldstartool.com

Product Showcase - Consew 228R-11-1 Industrial Sewing Machine - Goldstartool.com

Product Showcase - Consew 228R-11-2 Lockstitch Industrial Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
