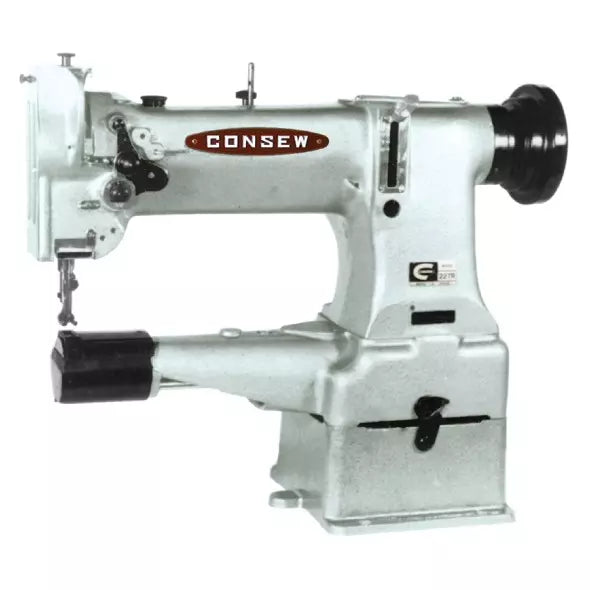

Consew 227R-2 10" High Speed Cylinder Bed 1 Needle Drop Feed Needle Feed Walking Foot Alternating Presser Feet Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew 227R-2 10" High Speed Cylinder Bed 1 Needle Drop Feed Needle Feed Walking Foot Alternating Presser Feet Lockstitch Industrial Sewing Machine With Table and Servo Motor

227R-2

This professional workstation comes complete with a high-torque Servo Motor and industrial table, providing the precision and power needed for high-end leatherwork and heavy-duty manufacturing.

$3,799.99
$3,799.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 227R-2

is a versatile, high-speed industrial lockstitch machine designed for sewing tubular and curved items. Its cylinder bed design is essential for maneuvering products like bags, sleeves, and footwear that cannot be sewn on a standard flatbed. Featuring Triple Feed (Compound Feed)—which synchronizes the needle, feed dog, and walking foot—this machine handles heavy leathers, vinyl, and canvas with zero material shifting.

  • Cylinder Bed Design: 2-9/16" (65mm) diameter bed allows for easy rotation of bags, cuffs, and curved leather panels.
  • Triple Feed (Compound Feed): The needle, feed dog, and alternating presser feet move in unison to ensure uniform stitch length on thick or slippery layers.
  • Large Horizontal Rotary Hook: Equipped with a large capacity bobbin to accommodate heavy threads and reduce downtime.
  • Safety Clutch: Automatically disengages the hook to prevent damage in the event of a thread jam or needle strike.
  • Reverse Stitching: Large, easy-to-use lever for quick back-tacking and seam reinforcement.
  • Adjustable Speed Servo Motor: Features an energy-efficient brushless motor for quiet operation and precise speed control from stitch-by-stitch to full speed.
  • Max Speed: 2,200 SPM (Stitches Per Minute)
  • Stitch Length: Max 4.2 s.p.i. (6mm)
  • Clearance Under Foot: 1/2" (13mm)
  • Cylinder Diameter: 2-9/16" (65mm)
  • Work Space: 10-1/4" (258mm)
  • Needle System: 135 x 17
  • Bobbin Type: Large "G" Style (Metal)
  • Stitch Type: 301 Lockstitch
  • Leather Goods: Handbags, purses, wallets, and belts.
  • Apparel & Accessories: Sleeves, cuffs, caps, and headwear.
  • Footwear: Specialized shoe and boot assembly.
  • Heavy Duty Gear: Backpacks, golf bags, and luggage.
  • Upholstery: Trimming and edging for automotive and marine interiors.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Consew 227R-2 Single Needle Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
