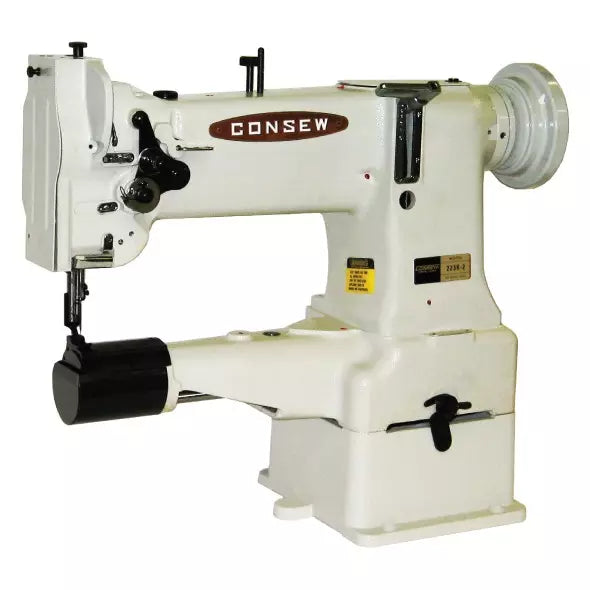

Consew 223R-2 10" High Speed Cylinder Bed Single Needle Drop Feed Needle Feed Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew 223R-2 10" High Speed Cylinder Bed Single Needle Drop Feed Needle Feed Lockstitch Industrial Sewing Machine With Table and Servo Motor

223R-2

This complete unit includes a professional industrial table and a high-torque Servo Motor for silent, precision-controlled sewing.

$3,599.95
$3,599.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 223R-2

is a high-speed, single-needle lockstitch machine specifically engineered for sewing light to medium-weight tubular and curved items. Its cylinder bed design is indispensable for maneuvering sleeves, cuffs, and bags that are impossible to sew on a standard flatbed.

Featuring a dual Needle Feed and Drop Feed system, this machine provides superior control over slippery or multi-layered materials by moving the needle in synchronization with the feed dog. This ensures the layers remain perfectly aligned without the "creeping" often found in bottom-feed machines.

  • Cylinder Bed Versatility: The 2-9/16" (65mm) diameter bed allows for effortless handling of small-radius curves and cylindrical items.
  • Synchronized Needle Feed: The needle moves with the material, providing constant traction and preventing ply-shift on delicate or synthetic fabrics.
  • High-Speed Productivity: Capable of reaching up to 2,500 stitches per minute, making it ideal for high-volume production lines.
  • Standard Rotary Hook: Optimized for consistent, high-quality lockstitch performance with light to medium-weight threads.
  • Energy-Efficient Servo Motor: Offers silent operation and adjustable speed control, consuming up to 90% less energy than traditional clutch motors.
  • Large Reverse Lever: Conveniently located for easy back-tacking and seam reinforcement.
  • Max Speed: 2,500 SPM (Stitches Per Minute)
  • Stitch Length: Max 5 s.p.i. (5mm)
  • Cylinder Diameter: 2-9/16" (65mm)
  • Clearance Under Foot: 5/16" (8mm)
  • Needle Bar Stroke: 1-5/16" (33.2mm)
  • Work Space: 10-1/4" (258mm)
  • Needle System: 135 x 7 or 135 x 5
  • Stitch Type: 301 Lockstitch
  • Apparel Finishing: Ideal for cuffs, sleeves, waistbands, and collars on jackets and shirts.
  • Light Leather & Vinyl: Wallets, pouches, small handbags, and cosmetic cases.
  • Headwear: Sewing and finishing caps, hats, and specialized headgear.
  • Technical Fabrics: Filter bags, lightweight canvas covers, and nylon straps

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
