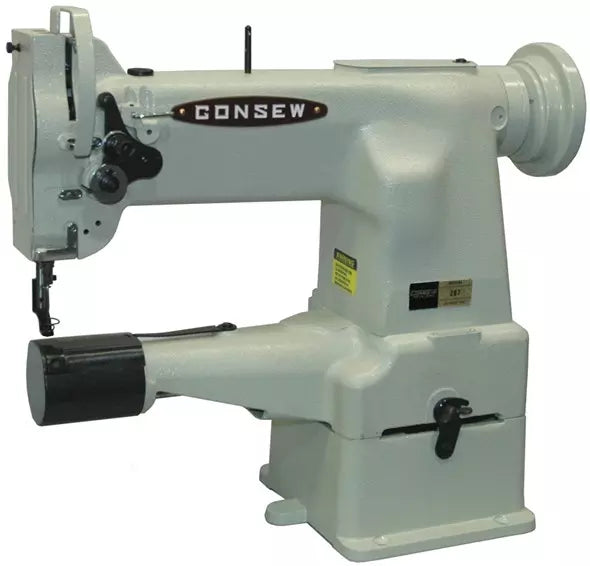

Consew 207 10" Heavy Duty 1 Needle Cylinder Bed Darning and Mending Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew 207 10" Heavy Duty 1 Needle Cylinder Bed Darning and Mending Lockstitch Industrial Sewing Machine With Table and Servo Motor

207

This complete unit includes a professional industrial table and a high-torque Servo Motor for whisper-quiet operation and total speed control.

$3,699.99
$3,699.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 207

is a specialized, heavy-duty industrial machine designed specifically for darning, mending, and patching a wide range of materials. Its small-diameter cylinder bed allows for easy access into tight, tubular, and curved spaces like sleeves, pant legs, and shoe interiors.

Unlike traditional machines with a feed dog, the Consew 207 features no feeding mechanism, allowing the operator to move the material freely in any direction (360-degree motion). This "free-motion" capability is essential for precisely filling holes or reinforcing worn areas in heavy-duty textiles.

  • Free-Motion Control: The lack of a feeding mechanism allows the operator to move the work in any direction, providing the manual control required for intricate darning.
  • Hopping Presser Foot: Specifically designed to hold material during stitch formation and release it for manual movement between stitches.
  • Heavy-Duty Cylinder Arm: The 2-9/16" diameter arm is ideal for repairing tubular items such as overalls, sleeves, and bags.
  • Vertical Axis Rotary Hook: Ensures consistent stitch quality and reliability under industrial workloads.
  • Energy-Efficient Servo Motor: Provides silent operation and adjustable speed control, consuming up to 90% less energy than traditional clutch motors.
  • Safety Balance Wheel: Built for durable, high-speed performance in professional repair environments.
  • Max Speed: 2,800 SPM (Stitches Per Minute)
  • Stitch Type: 301 Lockstitch
  • Feed Type: Manual / No Feed (Operator-controlled)
  • Clearance Under Foot: 3/8" (9.5mm)
  • Needle Bar Stroke: 1-1/4" (32mm)
  • Cylinder Diameter: 2-9/16" (65mm)
  • Work Space: 10-1/4" (258mm)
  • Needle System: 126 x 3 (Standard) or 135 x 17 (depending on subclass)
  • Bobbin Type: Pre-Wound "G" Style
  • Workwear & Uniforms: Repairing overalls, work shirts, athletic pants, and uniforms.
  • Outdoor & Industrial Gear: Mending tents, awnings, tarpaulins, and marine/truck covers.
  • Logistics & Storage: Patching post office bags, feed bags, and laundry bags.
  • Heavy Fabrics: Suitable for denim, canvas, vinyl, leather, and various coated materials.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
