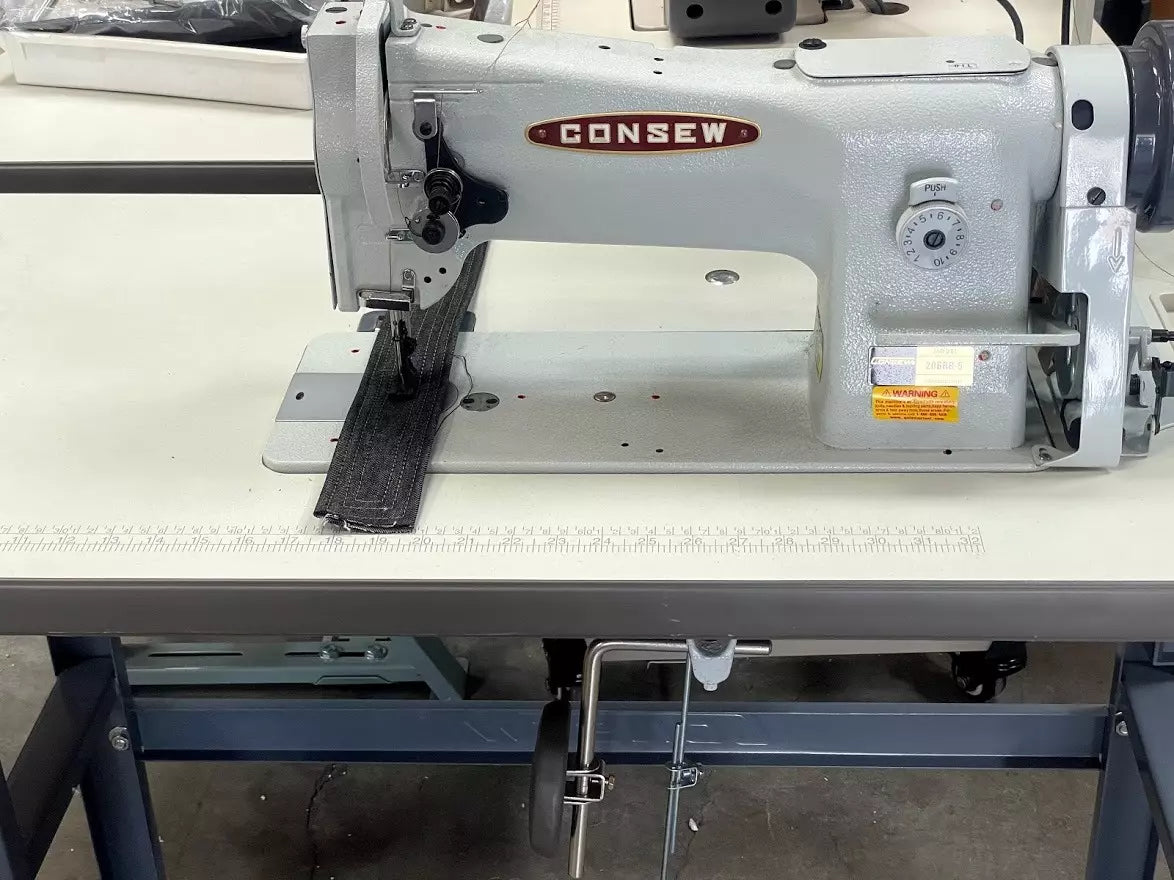

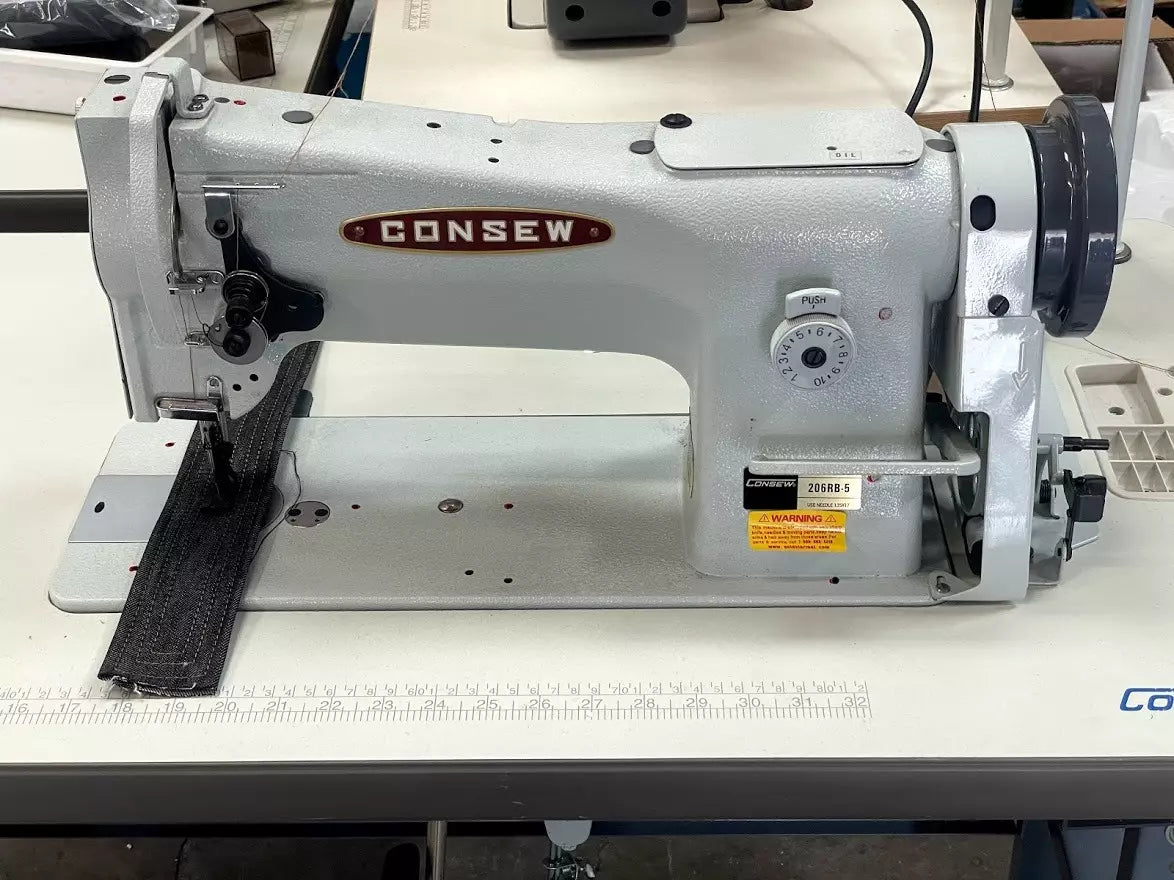

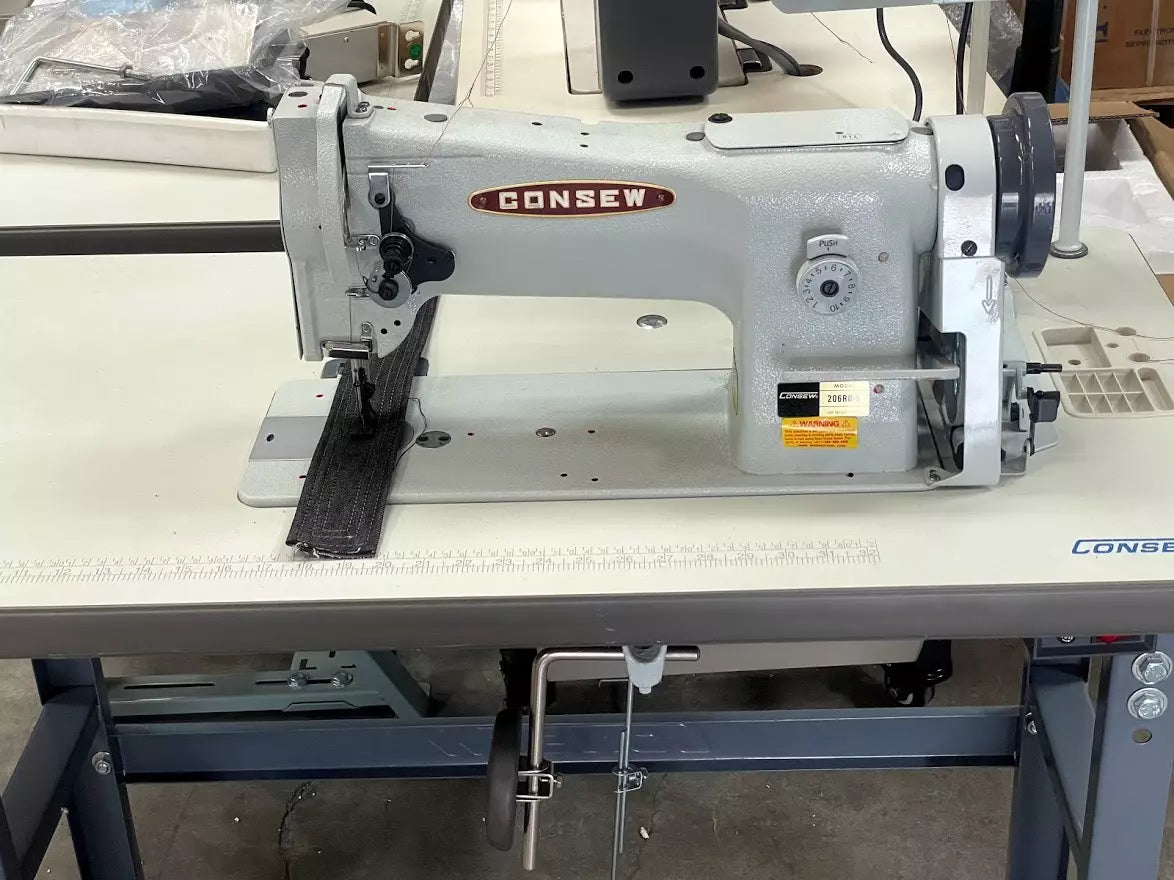

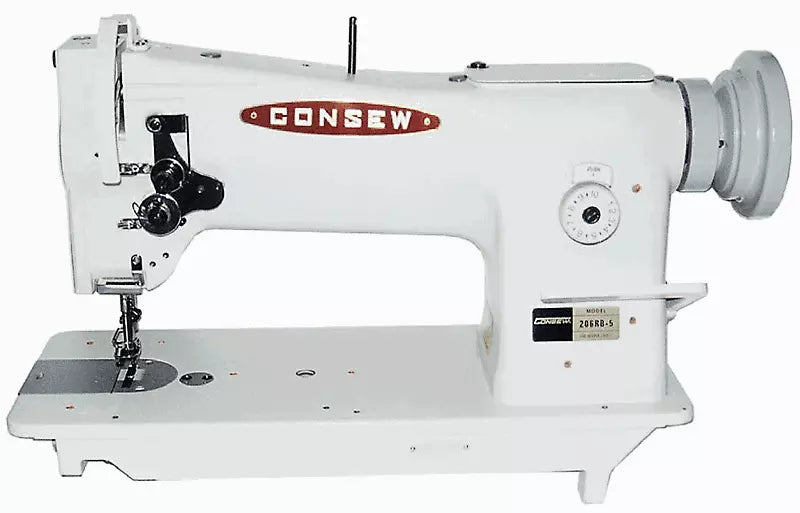

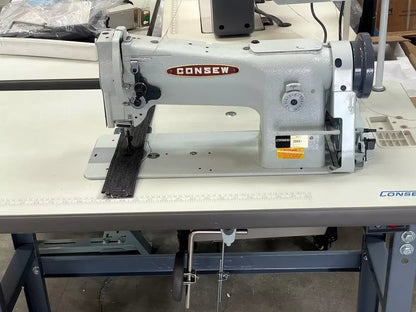

Consew 206RB-5 Triple Feed Heavy Duty Single Needle Drop Feed Lockstitch Upholstery Industrial Sewing Machine With Table and Servo Motor

Consew 206RB-5 Triple Feed Heavy Duty Single Needle Drop Feed Lockstitch Upholstery Industrial Sewing Machine With Table and Servo Motor

206RB-5

This complete unit comes with a professional-grade table and an energy-efficient Servo Motor for precise, stitch-by-stitch control.

$1,849.95
$1,849.95 Market price: $2,699.99
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • More accessories

Consew 206RB-5

is the quintessential heavy-duty industrial lockstitch machine, specifically engineered for the most demanding materials. Known for its "Triple Feed" (walking foot, needle feed, and drop feed) mechanism, it ensures that even the bulkiest or slipperiest layers move in perfect unison without shifting or bunching.

Equipped with a large vertical-axis bobbin to handle thicker threads and a high-clearance presser foot, this machine is the gold standard for automotive upholstery, marine vinyl, and heavy leather goods.

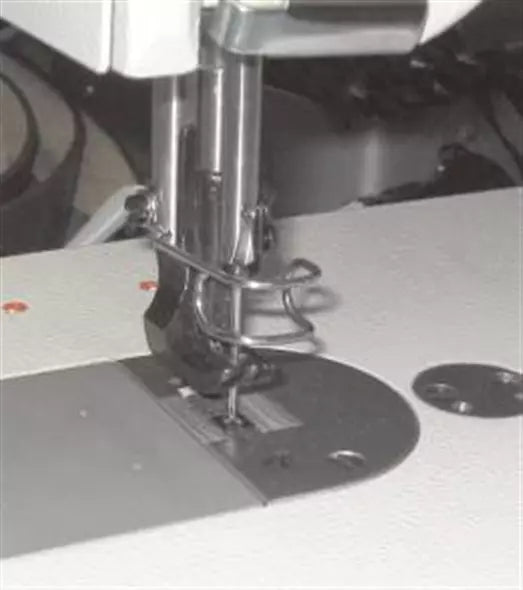

  • Triple Feed (Walking Foot) Mechanism: Synchronized movement of the feed dog, needle, and vibrating presser foot ensures positive feeding of heavy, bulky, or slick materials.
  • Large Vertical-Axis Bobbin: 40% more capacity than standard bobbins, allowing for long production runs with heavy-duty upholstery threads.
  • Safety Clutch: Features an automatic reset button to protect the timing belt and internal gears from damage in the event of a thread jam.
  • Extra-High Foot Lift: Provides a massive 14mm (9/16") clearance, allowing you to easily slide thick foam-backed vinyl or multiple layers of leather under the foot.
  • Centralized Lubrication: Simplified oiling system ensures all high-speed components remain lubricated for a longer mechanical lifespan.
  • Adjustable Speed Servo Motor: Unlike old-fashioned clutch motors, the included Servo Motor is silent when idle and allows you to set a maximum speed for precise detail work.
  • Max Speed: 3,300 SPM (Stitches Per Minute)
  • Max Stitch Length: 10mm (Adjustable via dial)
  • Needle System: 135 x 17 (DPx17) / Sizes #18 to #24
  • Presser Foot Lift: 8mm (Hand) / 14mm (Knee)
  • Bobbin Type: Large Vertical-Axis (M-Style)
  • Bed Dimensions: 18-1/4" x 7" (Standard Industrial size)
  • Work Space: 10-1/4" (258mm)
  • Motor: 110V AC Servo Motor (Energy Efficient)
  • Automotive & Marine Upholstery: Crafting car seats, boat covers, convertible tops, and foam-backed interiors.
  • Leather Goods: Heavy-duty construction of saddles, holsters, belts, and thick leather handbags.
  • Heavy Textiles: Sewing canvas tents, awnings, tarpaulins, and safety webbing.
  • Furniture: Assembling leather sofas, heavy tapestry cushions, and thick drapery.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h3><u><strong>ACCESSORIES for the CONSEW 206RB-5</strong></u></h3>
<p> </p>
<div class="row">

<div class="col-lg-6">



<p><strong>Needles:</strong> <a href="https://www.goldstartool.com/sewing-machine-needles-135x17.htm" target="_blank">Sewing Machine Needles 135x17</a><br><strong>Bobbins:</strong> <a href="https://www.goldstartool.com/large-m-style-bobbins-18034.htm" target="_blank">Large "M" Style Bobbins #18034</a><br><strong>Bobbin Case:</strong> <a href="https://www.goldstartool.com/bobbin-case-metal-m-size-18045.htm" target="_blank">Metal "M" Size #18045</a><br><strong>Needle Plate:</strong> <a href="https://www.goldstartool.com/needle-plate-throat-plate-walking-foot-consew-18030.htm" target="_blank">Consew #18030</a><br><strong>Feed Dog:</strong> <a href="https://www.goldstartool.com/feed-dog-consew-18031.htm" target="_blank">Consew #18031</a></p><br>

<p><em><strong>PRESSER FOOT KIT<br></strong></em><a href="https://www.goldstartool.com/walking-foot-presser-foot-kit-18-sets-of-feet.htm" target="_blank">Walking Foot Presser Foot Kit - 18 Sets of Feet</a></p>

<p></p>





</div>

<div class="col-lg-6">



<h3><strong>COMPATIBLE PRESSER FOOT OPTIONS</strong></h3>

<p><a href="https://www.goldstartool.com/with-teeth-walking-presser-foot-set-10796t-10795t.htm" target="_blank">With Teeth #10796T, 10795T</a><br><a href="https://www.goldstartool.com/without-teeth-walking-presser-foot-set-10796-10795.htm" target="_blank">Without Teeth #10796, 10795</a><br><a href="https://www.goldstartool.com/zcording-welting-piping-industrial-walking-presser-foot-set-s84-s83-.htm" target="_blank">Double Cording/Welting/Piping #S84, S83</a><br><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-s31-s32.htm" target="_blank">Welting/Piping/Cording #S31, S32</a><br><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-10796k-10795k.htm" target="_blank">Welting/Piping/Cording #10796K, 10795K</a><br><a href="https://www.goldstartool.com/cut-out-welting-presser-foot-set.htm" target="_blank">Cut Out Welting #S68</a><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-10796k-10795k.htm" target="_blank"><br></a><a href="https://www.goldstartool.com/zipper-cording-welting-piping-industrial-walking-presser-foot-set-s94-s93-.htm" target="_blank">Zipper/Cording/Welting/Piping #S94, S93</a><br><a href="https://www.goldstartool.com/left-edge-guide-topstitch-industrial-walking-presser-foot-s585l.htm" target="_blank">Left Edge Guide Topstitch #S585L<br></a><a href="https://www.goldstartool.com/right-edge-guide-topstitch-industrial-walking-presser-foot-s585r.htm" target="_blank">Right Edge Guide Topstitch #S585R<br></a><a href="https://www.goldstartool.com/left-triple-transport-walking-presser-foot-set-10796l-10795l.htm" target="_blank">Left Triple Transport #10796L, 10795L<br></a><a href="https://www.goldstartool.com/right-triple-transport-industrial-walking-presser-foot-set-10796r-10795r.htm" target="_blank">Right Triple Transport #10796R, 10795R</a></p><br><br>
<p></p><h3>OTHER ATTACHMENTS</h3>
<p><em><strong>BINDERS/FOLDERS</strong><a href="https://www.goldstartool.com/raw-edge-binder-set-s64.htm" target="_blank"><br></a></em><a href="https://www.goldstartool.com/raw-edge-plain-tape-binder-binding-attachment-100ls.htm" target="_blank">Raw Edge Plain Tape Binder Binding Attachment #100LS</a><br><a href="https://www.goldstartool.com/double-fold-binder-binding-attachment-folder-508l.htm" target="_blank">Double Fold Binder / Binding Attachment Folder #508L</a><a href="https://www.goldstartool.com/industrial-cover-stitch-collarette-bindertop-mount-style-clean-finish-double-fold.htm" target="_blank"><br>Top Mount Collarette Binder Top Clean</a><br><a href="https://www.goldstartool.com/table-mount-coverstitch-collarette-binder.htm" target="_blank">Table Mount Coverstitch Collarette Binder #S124A</a></p>
<p><strong><em>HEMMER</em></strong><a href="https://www.goldstartool.com/single-fold-up-turn-hemmer-s75u.htm" target="_blank"><br>Single Fold Up Turn Hemmer #S75U</a></p>
<p><strong><em>BUTTONHOLER</em></strong><a href="https://www.goldstartool.com/buttonholer-attachment-ys-4455.htm" target="_blank"><br>Buttonholer Attachment #YS-4455</a></p>
<p><strong><em>RUFFLER</em></strong><a href="https://www.goldstartool.com/deluxe-ruffler-attachment-for-industrial-sewing-machines-g900e.htm" target="_blank"><br>Deluxe Ruffler Attachment for Industrial Sewing Machines #G900E</a></p>
<p><strong><em>GUIDES<br></em></strong><a href="https://www.goldstartool.com/practical-suspended-edge-guide-gb-6-juki-mah-15201-0a0.htm" target="_blank">Practical Suspended Edge Guide GB-6 - JUKI #MAH-15201-0A0</a></p>



</div>

</div>

ACCESSORIES for the CONSEW 206RB-5

Needles: Sewing Machine Needles 135x17Bobbins: Large "M" Style Bobbins #18034Bobbin Case: Metal "M" Size #18045Needle Plate: Consew #18030Feed Dog: Consew #18031

PRESSER FOOT KITWalking Foot Presser Foot Kit - 18 Sets of Feet

COMPATIBLE PRESSER FOOT OPTIONS

With Teeth #10796T, 10795TWithout Teeth #10796, 10795Double Cording/Welting/Piping #S84, S83Welting/Piping/Cording #S31, S32Welting/Piping/Cording #10796K, 10795KCut Out Welting #S68Zipper/Cording/Welting/Piping #S94, S93Left Edge Guide Topstitch #S585LRight Edge Guide Topstitch #S585RLeft Triple Transport #10796L, 10795LRight Triple Transport #10796R, 10795R

OTHER ATTACHMENTS

BINDERS/FOLDERSRaw Edge Plain Tape Binder Binding Attachment #100LSDouble Fold Binder / Binding Attachment Folder #508LTop Mount Collarette Binder Top CleanTable Mount Coverstitch Collarette Binder #S124A

HEMMERSingle Fold Up Turn Hemmer #S75U

BUTTONHOLERButtonholer Attachment #YS-4455

RUFFLERDeluxe Ruffler Attachment for Industrial Sewing Machines #G900E

GUIDESPractical Suspended Edge Guide GB-6 - JUKI #MAH-15201-0A0

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Consew 206RB-5 Ultimate Test - Goldstartool.com

Tutorial - Consew 206RB-5 Demo

Product Showcase - Consew 205RB-1 & Consew 206RB-5 Sewing Machines

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
