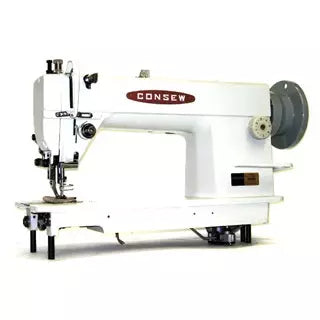

Consew 205RB-1 High-Speed Single Needle Walking Foot Industrial Sewing Machine

Consew 205RB-1 High-Speed Single Needle Walking Foot Industrial Sewing Machine

205RB-1

Single Needle Drop Feed Alternation Pressure Feet Lockstitch Industrial Sewing Machine With Table and Servo Motor

$1,425.95
$1,425.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 205RB-1

is a heavy-duty, high-speed lockstitch machine engineered for professional performance on medium to heavyweight materials. Utilizing a synchronized Walking Foot (Alternating Presser Feet) mechanism, this machine ensures that multiple layers of material—such as leather, vinyl, and canvas—are fed evenly without shifting or puckering. Its combination of industrial speed (up to 2,500 SPM) and a large vertical-axis hook makes it a reliable workhorse for furniture upholstery, automotive interiors, and heavy apparel.

  • Walking Foot (Alternating Presser Feet): Prevents fabric layers from slipping or "creeping" by using two feet that walk in tandem with the feed dog, ensuring consistent stitch length even over bulky seams.
  • Large Vertical-Axis Hook: Equipped with a high-capacity bobbin system that holds significantly more thread than standard bobbins, reducing downtime for thread changes on large projects.
  • Safety Clutch Mechanism: A critical protection feature that automatically disengages the hook timing belt if a thread jam occurs, preventing damage to the hook and internal gears.
  • Fully Automatic Lubrication: A built-in centrifugal pump continuously oils all moving parts, allowing for high-speed operation with minimal maintenance.
  • Adjustable Speed Servo Motor: Includes a modern 110V digital servo motor for silent operation, precise control for detail work, and up to 90% energy savings over old clutch motors.
  • Large Work Area: Offers a generous 10.25" (258mm) clearance to the right of the needle, providing ample space for maneuvering large garment panels or upholstery covers.
  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Walking Foot
  • Standard or Full Function: Standard Functions
  • Stitch Length: 3.2 s.p.i. (8mm)
  • Workspace: Standard Workspace
  • Speed, Max (S.P.M.): 2000
  • Clearance Under Presser Foot: Hand 1/4" (6.5mm) Foot 5/8" (16mm)
  • Needle: Metal 135 x 17
  • Work Space: 10 5/16" (262mm)
  • Stitch Type: 301
  • Bobbin: Pre-Wound 24311
  • Hook Size: 24312/24310
  • Needle Bar Stroke: 1 29/64" (37mm)
  • Work Surface: 7" x 18 23/32" (178mm x 475mm)

The 205RB-1 is the ideal choice for businesses and professionals specializing in:

  • Upholstery: Leather furniture, vinyl cushions, and heavy drapery.
  • Automotive & Marine: Car seat covers, interior panels, and boat tops.
  • Leather Goods: Handbags, belts, wallets, and briefcase assembly.
  • Heavy Apparel: Denim jackets, workwear, and tactical vests.
  • Outdoor Gear: Canvas bags, tents, and light-to-medium tarpaulins.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Consew 205RB-1 & Consew 206RB-5 Sewing Machines

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
