Consew 2050 LongArm 16.5" Extra Heavy Duty Cylinder Bed Long Arm 1 Needle Compound Feed Alternating Presser Feet Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew 2050 LongArm 16.5" Extra Heavy Duty Cylinder Bed Long Arm 1 Needle Compound Feed Alternating Presser Feet Lockstitch Industrial Sewing Machine With Table and Servo Motor

2050

This complete unit includes a specialized industrial table and a high-torque Servo Motor for maximum piercing power and speed control.

$7,499.95
$7,499.95 Market price: $5,600.00
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

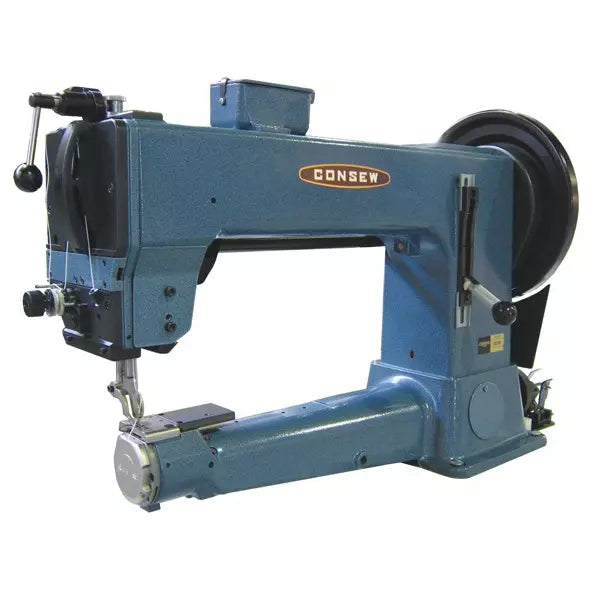

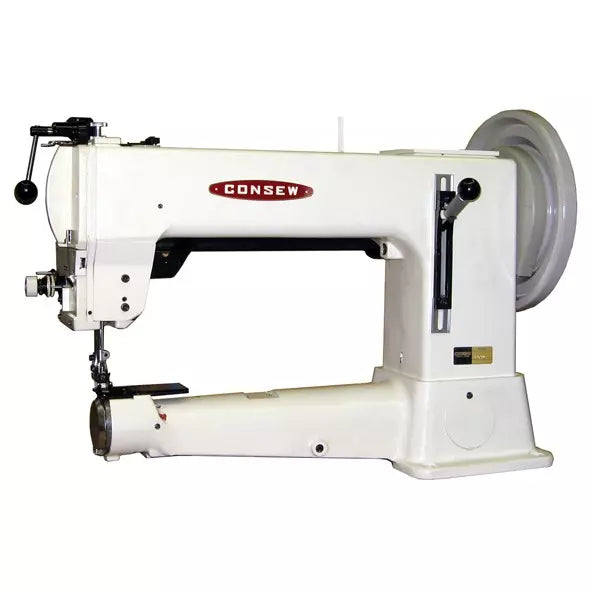

Consew 2050 LongArm

is an elite, extra-heavy-duty industrial sewing machine designed for the most demanding thick-material applications. Featuring an extended 16.5-inch cylinder bed, this machine offers the reach and clearance necessary for bulky, tubular, or curved items that standard cylinder machines cannot accommodate.

With its Triple Feed (Compound Feed) system—utilizing a bottom feed dog, needle feed, and alternating walking foot—the 2050 LongArm ensures absolute precision and power when sewing through heavy leather, synthetic webbing, and multi-layered canvas.

  • Extended 16.5" Cylinder Arm: Provides a massive workspace for large bags, golf bags, and oversized leather goods.
  • Extra-Heavy-Duty Triple Feed: Synchronized needle, feed dog, and walking foot eliminate material shifting on the thickest substrates.
  • Large Shuttle Hook: Equipped with a large capacity bobbin to handle thick industrial threads (up to size #207 and beyond) and reduce changeover time.
  • High Foot Lift: 20mm clearance allows for the effortless insertion of extremely thick materials or foam-padded assemblies.
  • Semi-Automatic Lubrication: Features a centralized oiling system for easy maintenance and long-term durability under heavy loads.
  • Brushless DC Servo Motor: Delivers extreme torque at low speeds, essential for precision leatherwork and heavy-duty sewing.
  • Max Speed: 800 SPM (Stitches Per Minute)
  • Stitch Length: Max 2-1/2 s.p.i. (10mm)
  • Cylinder Length: 16-1/2" (420mm)
  • Clearance Under Foot: 25/32" (20mm) by Knee Lift; 13mm by Hand
  • Needle System: 794 (DY x 3)
  • Needle Bar Stroke: 2-1/4" (56mm)
  • Bobbin Type: Large Shuttle
  • Stitch Type: 301 Lockstitch
  • Large Leather Goods: Golf bags, heavy luggage, saddles, and harnesses.
  • Safety Equipment: Fall protection harnesses, heavy-duty slings, and synthetic webbing.
  • Specialized Covers: Large boat covers, tarpaulins, and industrial tents.
  • Furniture & Automotive: Thick leather upholstery, panels, and trim.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Consew 2050 Long Arm Industrial Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
