Consew 2040-DSM Extra Heavy-Duty Decorative Stitching Machine

Consew 2040-DSM Extra Heavy-Duty Decorative Stitching Machine

2040-DSM

Single/Double Needle | 7 Interchangeable Cams | High-Torque Servo Motor

$12,999.99
$12,999.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

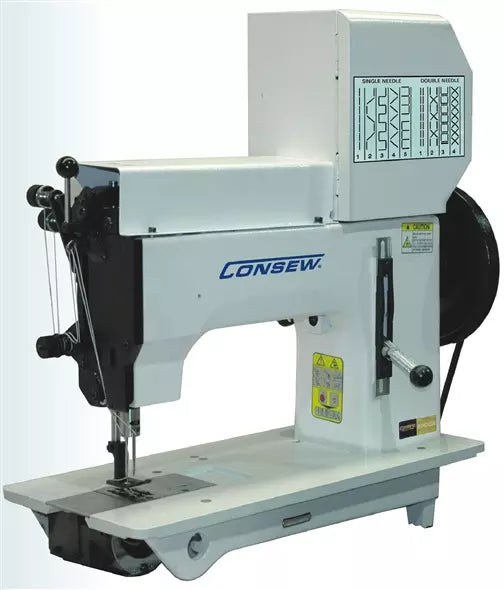

Consew 2040-DSM

is an extra heavy-duty powerhouse designed specifically for ornamental and structural sewing on bulky materials. This "Decorative Stitch Machine" (DSM) is built with an "Adler" style casting, providing the stability required for thick thread applications in the automotive, marine, and furniture industries.

What sets this machine apart is its interchangeable cam system, which allows the operator to switch between single and double-needle decorative patterns effortlessly. Whether you are adding premium diamond-stitch details to luxury car seats or reinforcing thick canvas bags, the 2040-DSM delivers massive piercing power with refined aesthetic results.

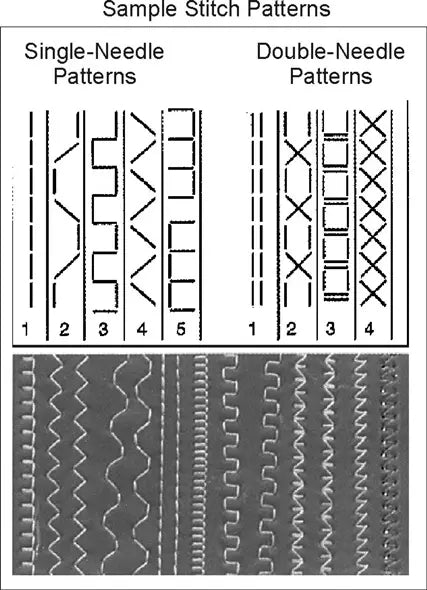

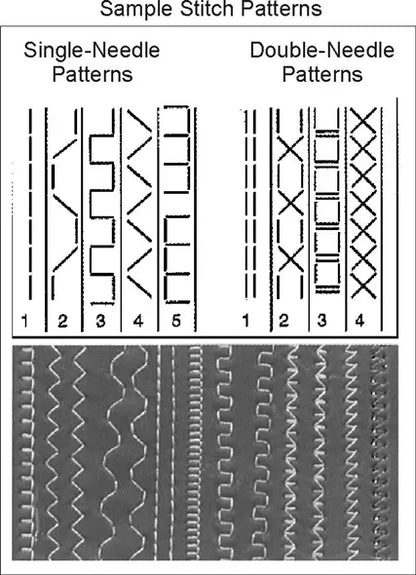

  • 14 Decorative Stitch Patterns: Comes standard with 7 interchangeable cams, allowing for up to 14 different ornamental stitch designs (using single or double needles).
  • Single & Double Needle Versatility: Easily configured as a high-strength single-needle lockstitch or a parallel double-needle machine for symmetrical decorative rows.
  • Large Oscillating Shuttle: Engineered to handle extremely thick thread (up to Tex 270 or higher) and massive material stacks without compromising stitch tension.
  • Superior Foot Clearance: A massive 20mm (13/16") presser foot lift accommodates the thickest leather hides, foam-backed upholstery, and multi-layered canvas.
  • Three-Row Drop Feed: Features a high-traction three-row feeder that ensures consistent material movement, even on "sticky" materials like vinyl or treated synthetics.
  • Energy-Efficient Servo Motor: The included 110V Servo Motor provides 90% energy savings compared to clutch motors and allows for the slow, precise control necessary for intricate decorative patterns.
  • Heavy-Duty Construction: Built for industrial longevity with all-metal internal gears and a robust flat-bed design.

Number of Needles: 2 (Double)

  • Feeding Mechanism: Drop Feed
  • Speed, Max (S.P.M.): 800
  • Clearance Under Presser Foot:12mm by hand / 20mm by foot
  • Needle: DYX3
  • Stitch: 0 ~ 10 mm
  • Hook: KSP204N
  • Needle Distances: 6mm, 5mm
  • Motor: 500W, 3/4HP, 1400RPM

The 2040-DSM is the elite choice for "Extra-Heavy" ornamental work:

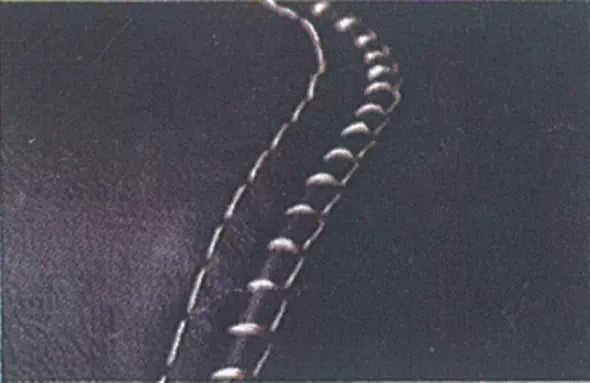

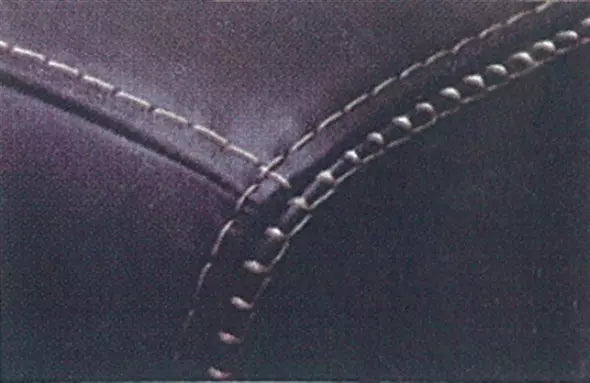

  • Luxury Automotive Trim: Decorative top-stitching on car seats, dashboards, and door panels.

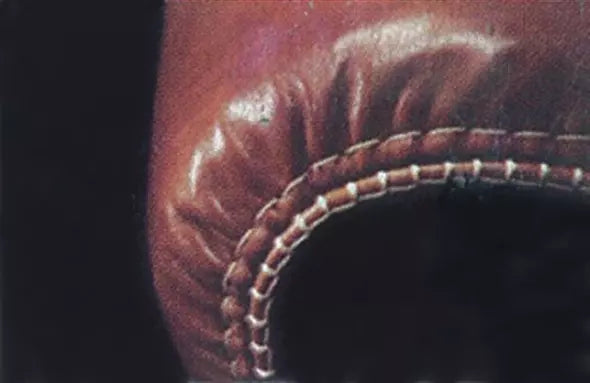

  • Custom Furniture: Premium upholstery for leather sofas, armchairs, and cushions.
  • Leather Goods: Ornamental stitching on suitcases, boots, horse saddles, and belts.
  • Technical Canvas: Decorative reinforcement for high-end backpacks, tents, and marine sails.

DOWNLOADS:

2040-DSM Spec Sheet (PDF)

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.
