Consew 199RBL-2A-1 High-Speed 2-Step Zig-Zag Industrial Sewing Machine

Consew 199RBL-2A-1 High-Speed 2-Step Zig-Zag Industrial Sewing Machine

199RBL-2A-1

Complete Set: Includes Assembled Table, Heavy-Duty Stand, and Adjustable Servo Motor

$6,499.99
$6,499.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

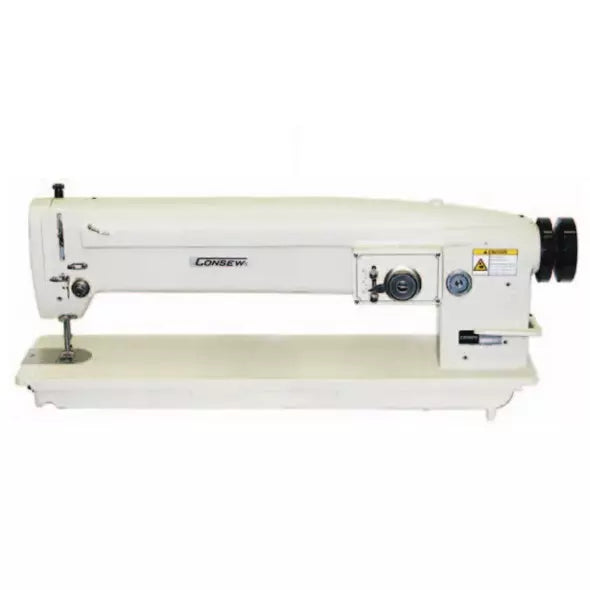

Consew 199RBL-2A-1

is a high-performance industrial zig-zag machine designed for light to medium-heavy materials. Unlike standard zig-zags, this model features a specialized 2-step, 3-point stitch pattern, providing enhanced seam strength and elasticity for technical textiles. Equipped with a large horizontal axis rotary hook and a silent, energy-efficient Servo motor, it is a reliable workhorse for apparel, synthetics, and decorative stitching.

Quick Comparison: Which 199RBL do you need?

  • 199RBL-1A-1: Standard 1-step (2-point) zig-zag.
  • 199RBL-2A-1: 2-step (3-point) zig-zag for added seam stretch.
  • 199RBL-3A-1: 3-step (4-point) zig-zag for maximum elasticity and heavy reinforcement.


  • 2-Step / 3-Point Zig-Zag: Provides a more secure and flexible seam than standard 1-step machines, perfect for synthetics and elastic materials.
  • High-Speed Operation: Capable of speeds up to 2,500 SPM, engineered to maintain stitch integrity at high production volumes.
  • Large Rotary Hook: Features a high-capacity horizontal axis hook that accommodates more thread and reduces downtime for bobbin changes.
  • Precision Control: The included 110V digital Servo motor offers 90% energy savings and allows the user to set exact speed limits for detailed work.
  • Adjustable Stitch Geometry: Offers a wide 10mm zig-zag width and a locking regulator to ensure stitch consistency throughout the project.
  • Built-in Reverse: Includes a manual reverse lever for instant back-tacking and seam reinforcement.
  • Stitch Type: Single Needle, 2-Step / 3-Point Zig-Zag (Lockstitch)
  • Max Sewing Speed: 2,500 Stitches Per Minute (SPM)
  • Max Stitch Width: 25/64" (10 mm)
  • Max Stitch Length: 5 S.P.I. (5 mm)
  • Needle System: 135 x 5
  • Needle Bar Stroke: 1 11/32" (34 mm)
  • Clearance Under Foot: 25/64" (10 mm) by Knee / 15/64" (6 mm) by Hand
  • Hook Type: Large Horizontal Axis Rotary Hook
  • Lubrication: Manual
  • Technical Apparel: Foundation garments, sportswear, and intimate apparel.
  • Synthetics: Attaching elastic, lace, and ribbons to nylon or Lycra.
  • Medium-Duty Goods: Lightweight bags, caps, and leather accessories.
  • Specialty Sewing: Appliqué, edge stitching, and decorative seaming on light to medium fabrics.

DOWNLOADS:

Catalog - Consew 199RBL-2A-1

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
