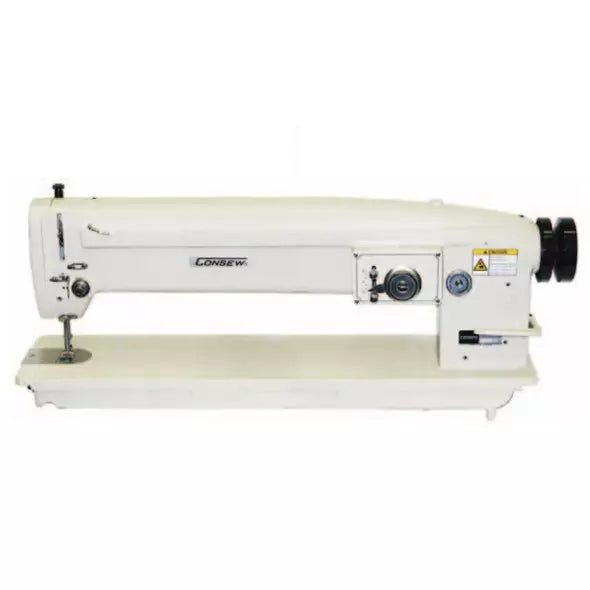

Consew 199RBL-1A-1 Heavy-Duty Long-Arm Zig-Zag Industrial Sewing Machine

Consew 199RBL-1A-1 Heavy-Duty Long-Arm Zig-Zag Industrial Sewing Machine

199RBL-1A-1

Complete Unit: 10" Long-Arm Workspace with Table, Stand, and Adjustable Servo Motor

$5,949.99
$5,949.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 199RBL-1A-1

is a high-speed, heavy-duty industrial machine engineered for versatile zig-zag and straight-stitch operations. Featuring a 10-inch long-arm workspace and a large "M" style bobbin, it provides the necessary clearance and thread capacity for bulky, large-scale projects. Built with a horizontal axis transverse rotary hook, this machine delivers consistent Federal Stitch Type 304 performance on leather, canvas, vinyl, and synthetics.

Quick Comparison: The 199RBL Series

  • 199RBL-1A-1 (Currently Viewing): Standard 1-step (2-point) zig-zag.
  • 199RBL-2A-1: 2-step (3-point) zig-zag for added seam flexibility.
  • 199RBL-3A-1: 3-step (4-point) zig-zag for maximum elasticity and reinforcement.


  • 10-Inch Long Arm: Extended workspace (10" free space to the right of the needle) allows for easier maneuvering of large materials like sails and tarpaulins.
  • Large Bobbin Capacity: Equipped with a large "M" style bobbin and horizontal axis transverse rotary hook to handle thicker threads and longer sewing cycles.
  • Dual Functionality: Easily switches from a wide zig-zag to a standard straight stitch by setting the width to "0."
  • Advanced Servo Motor: Includes a 110V digital Servo motor for silent operation, 90% energy savings, and precise speed control—perfect for beginners and professionals alike.
  • Locking Stitch Regulator: Features a locking zig-zag width regulator to maintain exact stitch geometry during high-speed production.
  • Integrated Reverse: Large manual lever for instant back-tacking and seam reinforcement.
  • Stitch Type: Single Needle, 1-Step Zig-Zag & Straight (Lockstitch Type 304/301)
  • Max Sewing Speed: 2,000 Stitches Per Minute (SPM)
  • Max Stitch Width: 3/8" (9.5 mm)
  • Max Stitch Length: 5 S.P.I. (5 mm)
  • Clearance Under Foot: 15/64" (6 mm)
  • Needle System: 135 x 17
  • Needle Bar Stroke: 1 11/32" (34 mm)
  • Workspace (Arm): 10" (258 mm)
  • Bed Size: 7" x 18 7/8" (178 mm x 480 mm)
  • Feeding Mechanism: Drop Feed
  • Large-Scale Goods: Manufacturing and repairing sails, hammocks, tents, truck covers, and grain bags.
  • Specialized Materials: High-performance stitching on leather, vinyl, canvas, and heavy synthetics.
  • Apparel & Decor: Ideal for patch sewing, appliqué work, edge sewing, and binding.
  • Reinforcement: Used extensively for abutting work and reinforced stitching on maritime and naval equipment.

DOWNLOADS:

Catalog - Consew 199RBL-1A-1

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
