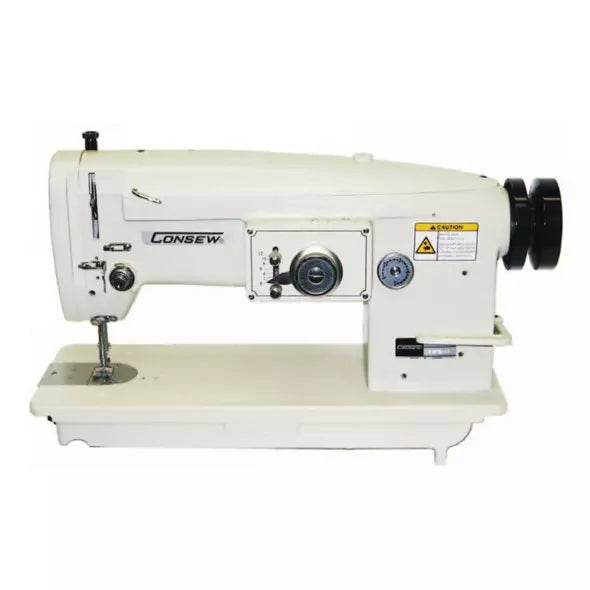

Consew 199RB-2A-1 High-Speed 2-Step Zig-Zag Industrial Sewing Machine

Consew 199RB-2A-1 High-Speed 2-Step Zig-Zag Industrial Sewing Machine

199RB-2A-1

Complete Set: Includes Fully Assembled Table, Heavy-Duty Stand, and Adjustable Servo Motor

$4,199.99
$4,199.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 199RB-2A-1

is a high-speed, single-needle zig-zag machine designed for light to medium-heavyweight materials. Featuring a specialized 2-step, 3-point stitch pattern, it provides significantly more seam elasticity and strength than standard 1-step machines. Equipped with a large horizontal axis rotary hook and a silent, energy-efficient Servo motor, it is the ideal choice for synthetic fabrics, elastic attachment, and decorative apparel work.

Quick Series Reference

  • 199RB-1A-1: Standard 1-step (2-point) zig-zag.
  • 199RB-2A-1 (This Model): 2-step (3-point) zig-zag for intermediate stretch and strength.
  • 199RB-3A-1: 3-step (4-point) zig-zag for maximum elasticity.


  • 2-Step / 3-Point Zig-Zag: Creates a secure, reinforced seam that allows for fabric stretch without thread breakage.
  • Large Rotary Hook: The horizontal axis "M" style hook accommodates more thread, reducing downtime for bobbin changes during long production runs.
  • High-Speed Productivity: Operates at up to 2,500 SPM, allowing for rapid garment and accessory assembly.
  • Quiet Servo Motor: Includes a 110V digital Servo motor—90% more energy-efficient than clutch motors with full speed adjustability.
  • Locking Stitch Regulator: Features a dial-type regulator with a locking width lever to ensure uniform stitch geometry across every seam.
  • Integrated Reverse: Large, easy-to-use reverse lever for back-tacking and structural reinforcement at the start and end of seams.
  • Stitch Type: Single Needle, 2-Step / 3-Point Zig-Zag (Lockstitch)
  • Max Sewing Speed: 2,500 Stitches Per Minute (SPM)
  • Max Stitch Width: 25/64" (10 mm)
  • Max Stitch Length: 5 S.P.I. (5 mm)
  • Clearance Under Foot: 25/64" (10 mm) by Knee / 15/64" (6 mm) by Hand
  • Needle System: 135 x 5
  • Needle Bar Stroke: 1 11/32" (34 mm)
  • Hook Type: Large Horizontal Axis Rotary Hook
  • Feeding Mechanism: Drop Feed
  • Technical Apparel: Foundation garments, sportswear, lingerie, and intimate apparel.
  • Elastic Attachment: Ideal for attaching lace, elastics, and ribbons to stretch fabrics like Lycra or nylon.
  • Synthetic Goods: Excellent for light to medium-duty bags, caps, and synthetic webbing.
  • Specialty Construction: Butted seaming, edge stitching, and appliqué on apparel and lightweight marine covers.

DOWNLOADS:

Catalog - Consew 199RB-2A-1

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
