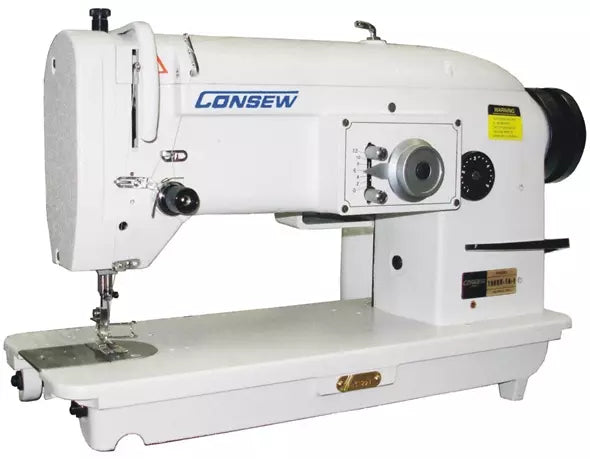

Consew 199RB-1A-1 High-Speed Single-Step Zig-Zag Industrial Sewing Machine

Consew 199RB-1A-1 High-Speed Single-Step Zig-Zag Industrial Sewing Machine

199RB-1A-1

Complete Set: Includes Fully Assembled Table, Heavy-Duty Stand, and Adjustable Servo Motor

$3,149.00
$3,149.00 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 199RB-1A-1

is a high-speed, single-needle lockstitch machine designed for versatile zig-zag and straight-stitch operations. Built for light to medium-heavyweight materials, it features a large horizontal axis rotary hook and a robust drop-feed mechanism. Whether you are performing general garment assembly, appliqué, or edge-stitching, this machine delivers consistent Federal Stitch Type 304 quality at speeds up to 2,500 SPM.

While the -2A and -3A models are specialized for elastic materials (multi-step), the 1-Step (-1A-1) is the preferred choice for standard reinforcement and decorative zig-zagging. Its simpler mechanism allows for slightly higher maintenance ease and is the go-to workhorse for traditional tailoring and garment manufacturing.

  • High-Speed Utility: Reaches up to 2,500 SPM, significantly reducing production time for long seams.
  • Large "M" Style Bobbin: Equipped with a large horizontal axis rotary hook that holds more thread, minimizing interruptions on large projects.
  • Dial-Type Stitch Regulator: Features a locking zig-zag width regulator to ensure uniform stitch geometry during high-speed runs.
  • Versatile Stitching: Easily transitions from a wide 10mm zig-zag to a perfect straight stitch by setting the width to zero.
  • Energy-Efficient Servo Motor: Includes a 110V digital Servo motor for silent operation, 90% power savings, and precise speed control for detailed work.
  • Precision Needle Positioning: Adjustable needle position (left, center, right) allows for specialized edge stitching and binding.
  • Stitch Type: Single Needle, 1-Step (2-Point) Zig-Zag & Straight (Type 304/301)
  • Max Sewing Speed: 2,500 Stitches Per Minute (SPM)
  • Max Stitch Width: 25/64" (10 mm)
  • Max Stitch Length: 5 S.P.I. (5 mm)
  • Needle System: 135 x 5
  • Needle Bar Stroke: 1 11/32" (34 mm)
  • Presser Foot Clearance: 15/64" (6 mm) by Hand / 25/64" (10 mm) by Knee
  • Hook Type: Large Horizontal Axis Transverse Rotary Hook
  • Lubrication: Manual
  • Apparel & Accessories: Blouses, shirts, uniforms, suits, and children’s wear.
  • Light-Duty Leather & Vinyl: Shoes, caps, belts, and small leather articles.
  • Specialty Seaming: Excellent for appliqué work, edge stitching, and butted seaming on synthetics.
  • Home Decor: Light-to-medium curtains, cushions, and decorative textile finishes.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
