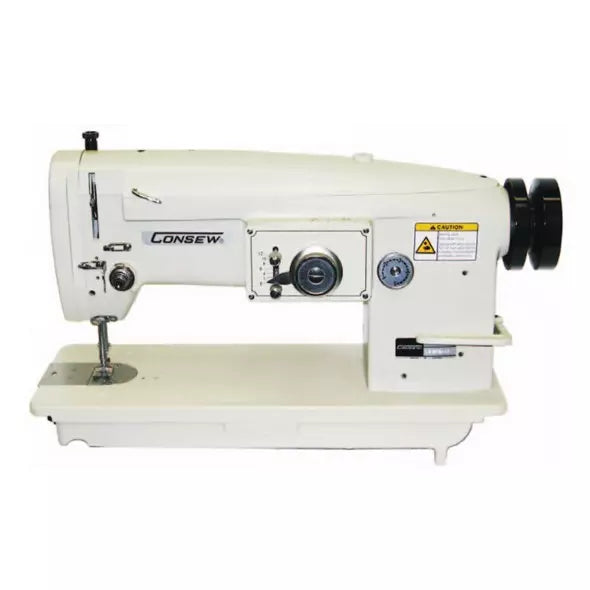

Consew 199R-3A-1 High-Speed 4-Step Zig-Zag Industrial Sewing Machine

Consew 199R-3A-1 High-Speed 4-Step Zig-Zag Industrial Sewing Machine

199R-3A-1

Complete Unit: Includes Assembled Table, Heavy-Duty Stand, and Adjustable Servo Motor

$2,999.00
$2,999.00 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 199R-3A-1

is a high-speed, single-needle zig-zag machine built for extreme durability and precision. Unlike standard zig-zags, this model features a 4-step (3-stitch) pattern, providing an additional stitch for maximum reinforcement on high-stress seams. It is designed to handle heavy-duty stretch materials, canvas, and leather, making it an essential tool for manufacturing sails, parachutes, and tactical gear.

Quick Series Comparison

  • 199R-1A-1: Standard 1-step (2-point) zig-zag.
  • 199R-2A-1: 3-step (2-stitch) zig-zag for general stretch fabrics.
  • 199R-3A-1 (This Model): 4-step (3-stitch) zig-zag for maximum reinforcement and structural integrity.
  • 4-Step / 3-Stitch Zig-Zag: Delivers superior seam strength and elasticity by distributing tension across more points—essential for heavy-duty stretch fabrics.
  • Dual Functionality: Easily transitions from a wide 9.5mm zig-zag to a standard straight stitch by setting the width regulator to "0."
  • 10-Inch Long Arm: Extended workspace (10" free space to the right of the needle) allows for easier maneuvering of large projects like tents and tarpaulins.
  • Energy-Efficient Servo Motor: Includes a 110V digital Servo motor for silent operation, 90% power savings, and precise speed control—perfect for intricate details.
  • Locking Stitch Regulator: Features a locking zig-zag width regulator to ensure consistent stitch geometry even at high speeds.
  • Integrated Reverse: Large manual lever for instant back-tacking and seam reinforcement at structural points.
  • Stitch Type: 4-Step / 3-Stitch Zig-Zag (Reinforced)
  • Max Sewing Speed: 3,000 SPM (Zig-Zag) / 3,200 SPM (Straight)
  • Max Stitch Width: 3/8" (9.5 mm)
  • Max Stitch Length: 5 S.P.I. (5 mm)
  • Needle System: 16 x 95
  • Hook Type: Horizontal Axis Transverse Rotary Hook
  • Bobbin Type: Regular (Metal B75)
  • Workspace (Arm): 10" (258 mm)
  • Clearance Under Foot: 15/64" (6 mm)
  • Marine & Outdoor Gear: Professional-grade construction of boat covers, sails, tents, and awnings.
  • Aviation & Military: Parachutes, tactical vests, and heavy-duty nylon webbing.
  • Technical Textiles: Reinforced stitching on air-tucking, cording, and synthetic bags.
  • Heavy Fabrics: Reliable performance on leather, vinyl, canvas, and similar high-density materials.

DOWNLOADS:

199R Series Spec Sheet (PDF)

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
