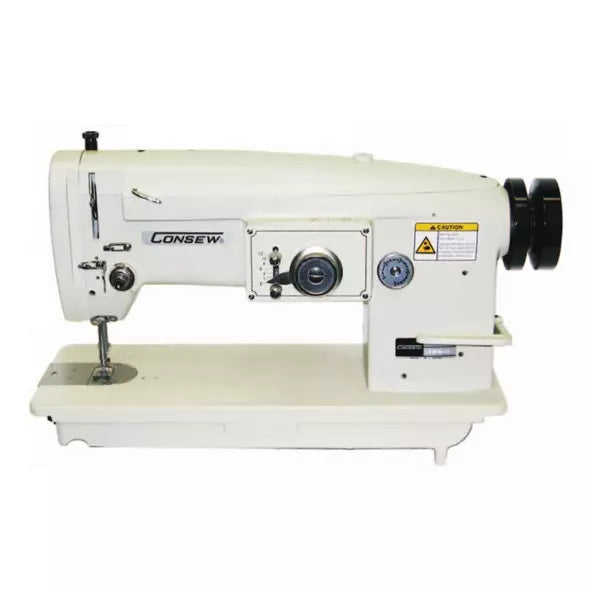

Consew 199R-2A-1 High-Speed 3-Step Zig-Zag Industrial Sewing Machine

Consew 199R-2A-1 High-Speed 3-Step Zig-Zag Industrial Sewing Machine

199R-2A-1

Complete Unit: Includes Assembled Table, Heavy-Duty Stand, and Adjustable Servo Motor

$3,250.00
$3,250.00 Market price: $4,000.00
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 199R-2A-1

is a high-speed, single-needle lockstitch machine engineered for specialized 3-step (2-stitch) zig-zag operations. This 3-point stitch pattern provides superior elasticity and seam strength compared to standard zig-zags, making it the industry standard for attaching elastic and lace to stretch fabrics. Equipped with a 10-inch long arm and a powerful Servo motor, it handles everything from lightweight intimate apparel to medium-heavy synthetic webbing with ease.

Quick Series Reference

  • 199R-1A-1: Standard 1-step (2-point) zig-zag.
  • 199R-2A-1 (This Model): 3-step (2-stitch) zig-zag for high elasticity.
  • 199R-3A-1: 4-step (3-stitch) zig-zag for maximum seam reinforcement.
  • 3-Step / 2-Stitch Zig-Zag: Distributes stitch tension across three points to ensure the seam can stretch with the fabric without breaking the thread.
  • 10-Inch Long Arm Workspace: Provides an extended 10" (258 mm) clearance to the right of the needle, perfect for maneuvering bulky projects or large panels of fabric.
  • High-Speed Performance: Capable of speeds up to 3,000 SPM, designed to maintain stitch integrity during high-volume production.
  • Dual Functionality: Easily switches from a wide 9.5mm zig-zag to a standard straight stitch by adjusting the width regulator.
  • Energy-Efficient Servo Motor: Includes a 110V digital Servo motor for silent operation, 90% power savings, and precise speed control for intricate work.
  • Locking Stitch Regulator: Features a dial-type regulator with a locking width lever to ensure uniform stitch geometry throughout your project.
  • Stitch Type: 3-Step / 2-Stitch Zig-Zag & Straight (Lockstitch)
  • Max Sewing Speed: 3,000 Stitches Per Minute (SPM)
  • Max Stitch Width: 3/8" (9.5 mm)
  • Max Stitch Length: 5 S.P.I. (5 mm)
  • Needle System: 16 x 95
  • Needle Bar Stroke: 1-11/32" (34 mm)
  • Work Space (Arm): 10" (258 mm)
  • Clearance Under Foot: 15/64" (6 mm)
  • Feeding Mechanism: Drop Feed
  • Hook Type: Horizontal Axis Transverse Rotary Hook
  • Intimate Apparel: Attaching lace, elastic, and trim to lingerie, foundation garments, and swimwear.
  • Technical Textiles: Ideal for nylon webbing, elasticized sports gear, and orthopedic supports.
  • Synthetics & Knits: Specialized seaming for Lycra, Spandex, and other high-stretch synthetic materials.
  • General Tailoring: Decorative stitching, appliqué, and edge-to-edge joining on light to medium fabrics.

DOWNLOADS:

199R Series Spec Sheet (PDF)

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
