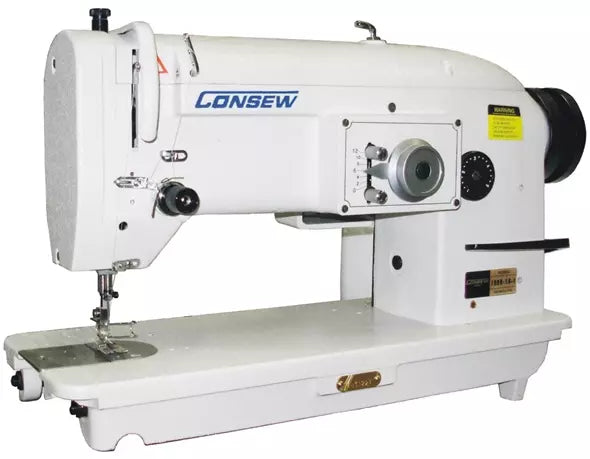

Consew 199R-1A-1 High-Speed Single-Step Zig-Zag Industrial Sewing Machine

Consew 199R-1A-1 High-Speed Single-Step Zig-Zag Industrial Sewing Machine

199R-1A-1

Complete Set: Includes Assembled Table, Heavy-Duty Stand, and Adjustable Servo Motor

$2,899.99
$2,899.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 199R-1A-1

is a high-speed, single-needle lockstitch machine designed for versatile 1-step (2-point) zig-zag and straight stitching. Engineered for light to medium-heavyweight materials, it features a 10-inch long arm for maneuvering large projects and a robust drop-feed mechanism. Whether you are performing general apparel assembly, appliqué, or edge-stitching, this machine delivers consistent Federal Stitch Type 304 quality at industry-leading speeds.

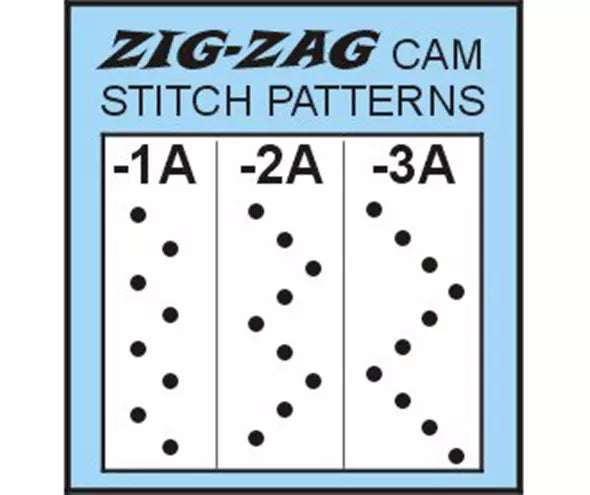

Series Comparison

  • 199R-1A-1 (This Model): Standard 1-step (2-point) zig-zag for general sewing.
  • 199R-2A-1: 3-step (2-stitch) zig-zag for stretch and elastic materials.
  • 199R-3A-1: 4-step (3-stitch) zig-zag for maximum seam reinforcement.
  • High-Speed Productivity: Capable of reaching up to 3,000 SPM (Zig-Zag) and 3,200 SPM (Straight), significantly reducing production time.
  • 10-Inch Long Arm: Extended workspace (258 mm clearance) provides the room needed to handle bulky garments, tents, or canvas panels.
  • Dual Functionality: Seamlessly transitions from a wide 9.5 mm zig-zag to a standard straight stitch by setting the width regulator to zero.
  • Energy-Efficient Servo Motor: Includes a 110V digital Servo motor for silent operation, 90% power savings, and precise speed control for intricate detailing.
  • Adjustable Needle Positioning: The needle can be shifted (Left, Center, Right) to accommodate specialized edge-stitching and binding.
  • Locking Stitch Regulator: Features a dial-type regulator with a locking width lever to ensure uniform stitch geometry during high-speed runs.
  • Stitch Type: 1-Step (2-Point) Zig-Zag & Straight (Lockstitch)
  • Max Sewing Speed: 3,000 SPM (Zig-Zag) / 3,200 SPM (Straight)
  • Max Stitch Width: 3/8" (9.5 mm)
  • Max Stitch Length: 5 S.P.I. (5 mm)
  • Needle System: 16 x 95 (Standard)
  • Needle Bar Stroke: 1 11/32" (34 mm)
  • Clearance Under Foot: 15/64" (6 mm)
  • Hook Type: Horizontal Axis Transverse Rotary Hook
  • Lubrication: Manual
  • Apparel Manufacturing: Professional assembly of shirts, dresses, suits, and children's wear.
  • Light-Duty Upholstery: Excellent for canvas, vinyl, and light leather accessories like caps and belts.
  • Specialty Textiles: Ideal for appliqué work, edge-to-edge joining (butted seaming), and elastic attachment on medium-weight fabrics.
  • Outdoor Goods: Light sail repair, banners, and nylon webbing projects.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
