Consew 14TU2345 Portable Multi-Function "Coverlock" Sewing Machine

Consew 14TU2345 Portable Multi-Function "Coverlock" Sewing Machine

14TU2345

Professional Overlock &Coverstitch Hybrid System

$495.95
$495.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

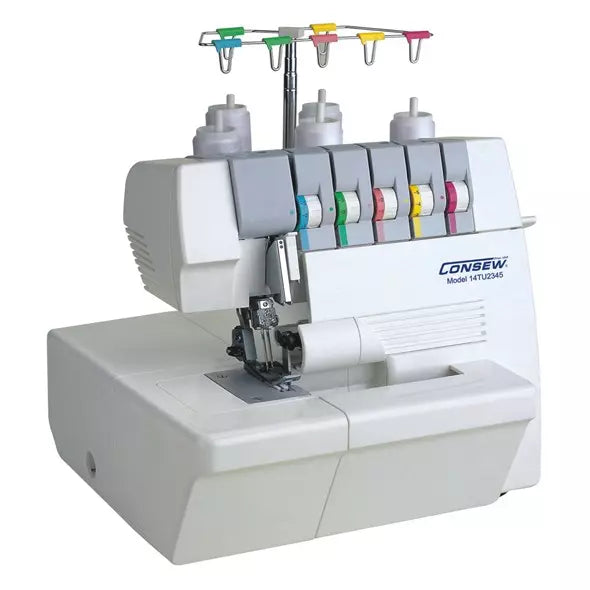

Consew 14TU2345

is a versatile "Coverlock" machine that brings industrial-level finishing to a portable, user-friendly design. This multi-function powerhouse allows you to switch between professional overlocking (serging) and a true coverstitch (hemming) in one unit. Whether you are constructing heavy-duty denim seams or finishing delicate silk necklines, the 14TU2345 provides the elasticity and strength of factory-quality stitches. It is the perfect all-in-one solution for sample rooms, alteration shops, and professional home studios.

Consew 14TU2345

is a "Coverlock" hybrid that eliminates the need for two separate machines. By combining the cutting and seaming of a serger with the professional hemming of a coverstitch, it provides a complete garment-finishing solution. It is a durable, high-speed portable unit designed for those who demand industrial results in a compact space.

  • Garment Construction: Creating 5-thread safety stitches for maximum seam strength in jeans and workwear.
  • Professional Hemming: Finishing T-shirts and activewear with a 4mm double-needle coverstitch.
  • Decorative Work: Using pearl stitches and ornamental overlocking for bridal wear and linens.
  • Tubular Sewing: Hemming sleeves, collars, and pant legs using the integrated free arm.
  • High-End Tailoring: Seaming suit linings and overedging woolens, tweeds, and silks.
  • Hybrid Stitch Capability: Performs overlocking, safety stitching, and coverstitch hemming in a single machine.
  • Precision Differential Feed: Eliminates stretching on knits and puckering on lightweight wovens. Also allows for intentional "gathering" effects.
  • Advanced Cutting System: Equipped with a heavy-duty tungsten-carbide top knife and carbon steel lower knife for crisp, clean cuts on thick materials.
  • Automatic Tension Release: Assures accurate thread placement through tension discs for consistent stitch quality.

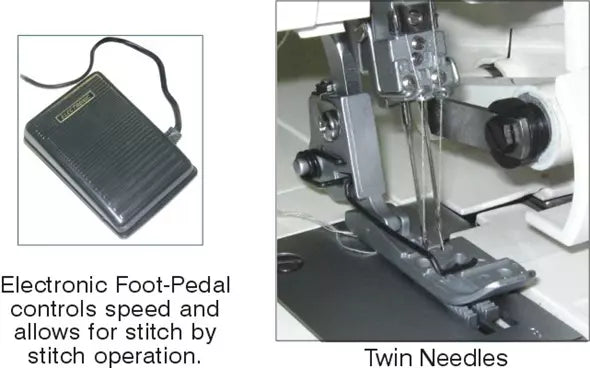

  • Cylinder Free Arm: Removable cloth plate allows for easy sewing of tubular items like cuffs, sleeves, and pant legs.
  • Needle Guard System: Prevents needle bending or breakage when transitioning over thick seams or heavy fabrics like tweed and denim.
  • Stitch Types: Coverstitch, Safety Stitch, Overlock, Pearl Stitch, Flatlock, and Rolled Hem
  • Thread Configurations: 2, 3, 4, or 5 Threads
  • Max Sewing Speed: 1,200 – 1,300 Stitches Per Minute (SPM)
  • Max Stitch Length: Up to 4.0 mm
  • Overedge Width: 3.0 mm – 7.7 mm
  • Coverstitch Width: 4.0 mm
  • Differential Feed Ratio: 0.5 – 2.0
  • Presser Foot Lift: 4.5 mm
  • Needle System: HAX1 (Standard Household/Serger Needles)
  • Power: 110V (standard) / 220V (optional)
  • Weight: 15.5 lbs (Portable)

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
