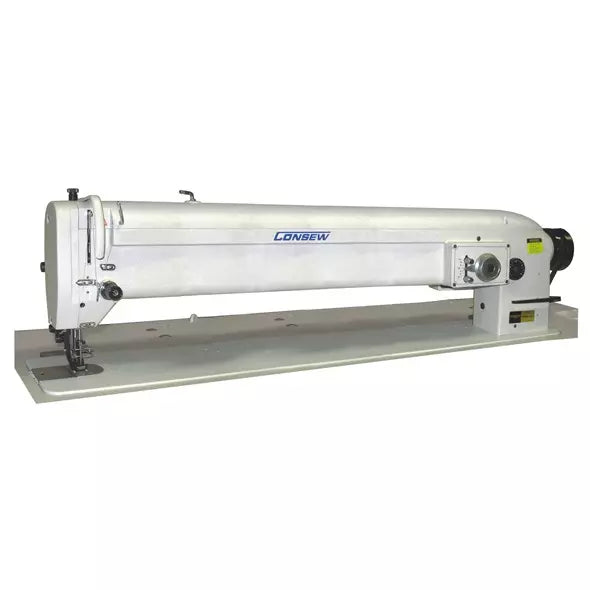

Consew 146RBL-1A-1 Single Needle, Drop Feed, Walking Foot, Long Arm, Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew 146RBL-1A-1 Single Needle, Drop Feed, Walking Foot, Long Arm, Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor

146RBL-1A-1

Consew 146RBL-1A-1 Long Arm Zig-Zag Walking Foot Industrial Sewing Machine

$8,699.99
$8,699.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 146RBL-1A-1

is a heavy-duty, single-needle industrial sewing machine featuring a massive 30-inch long arm for handling oversized projects. Engineered for medium to heavy-weight fabrics, it combines a Walking Foot (Top Feed) and Drop Feed to eliminate material slippage and ensure consistent stitching across multiple layers.

This model produces a classic 2-step / 1-stitch zig-zag (Federal Stitch 304), making it the industry standard for wetsuits, leather goods, and tarpaulins. This complete unit comes fully assembled with a professional industrial table and a high-torque Servo Motor for silent, energy-efficient operation.

  • 30" Extended Workspace: Provides 765mm of horizontal clearance, ideal for bulky items like sails, boat covers, and large leather panels.
  • Walking Foot Feeding: Dual-feed mechanism (top and bottom) prevents fabric shifting and ensures uniform timing on difficult materials.
  • Standard Zig-Zag (1A): Precision 2-step / 1-stitch pattern optimized for heavy-weight assembly and stretch-seam durability.
  • Large "M" Style Bobbin: Features a horizontal axis transverse rotary hook to accommodate high-capacity bobbins and thick threads.
  • Adjustable Speed Servo Motor: Provides 90% energy savings over clutch motors and allows for precise stitch-by-stitch control.
  • Built-in Reverse: Large, easy-access lever for effortless back-tacking and seam reinforcement.
  • Max Speed: 2,500 SPM (Stitches Per Minute)
  • Zig-Zag Width: Max 3/8" (9.5mm)
  • Stitch Length: Max 5 s.p.i. (5mm)
  • Workspace (Arm Length): 30" (765mm)
  • Clearance Under Foot: 25/64" (10mm)
  • Needle System: 135 x 17
  • Bobbin Type: Large "M" Style (Metal 212O34-312)
  • Needle Bar Stroke: 1-11/32" (34mm)
  • Bed Size: 7" x 33-1/4" (178mm x 848mm)
  • Stitch Type: 2-Step / 1-Stitch Zig-Zag (Federal Stitch 304)
  • Marine & Technical Gear: Wetsuits, drysuits, and diving equipment.
  • Heavy Textiles: Tarpaulins, boat covers, tents, and awnings.
  • Leather & Footwear: Shoes, boots, belts, and leather upholstery.
  • Industrial Canvas: Banners, heavy nylon webbing, and synthetic covers.

DOWNLOADS:

Catalog - Consew 146RBL-1A-1

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
