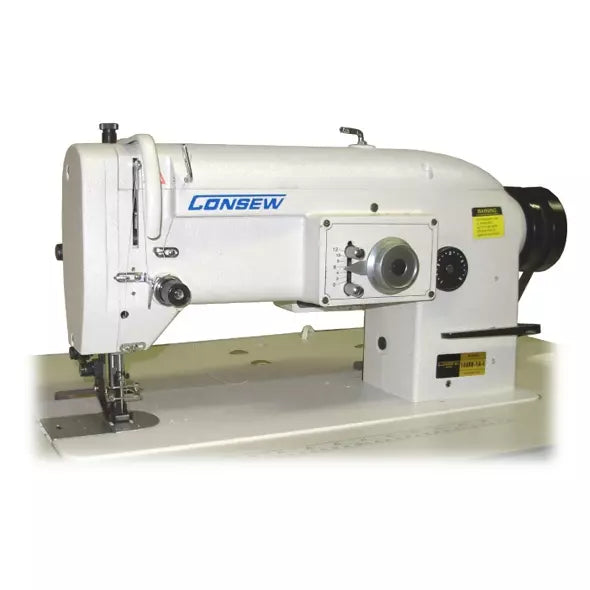

Consew 146RB-2A-1 Single Needle, Drop Feed, Walking Foot, Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew 146RB-2A-1 Single Needle, Drop Feed, Walking Foot, Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor

146RB-2A-1

This complete unit comes with a professional industrial table and a high-torqueServo Motorfor silent, energy-efficient performance.

$4,899.99
$4,899.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 146RB-2A-1

is an industry-leading, heavy-duty zig-zag machine designed for medium to heavy-weight materials. Unlike standard zig-zag machines, this model features a Walking Foot (Top Feed) in addition to a Drop Feed, ensuring that multiple layers of fabric move in perfect synchronization without shifting.

The "2A-1" configuration provides a 3-step / 2-stitch zig-zag pattern, which is specifically engineered to prevent "tunneling" on light fabrics and provide maximum seam elasticity on heavy materials.

  • Walking Foot (Top Feed): Eliminates ply-shifting by gripping the top layer of material, making it ideal for vinyl, leather, and slippery synthetics.
  • 3-Step / 2-Stitch Zig-Zag: A specialized pattern that provides a flatter, stronger seam compared to standard zig-zag, perfect for high-stress applications.
  • Large "M" Style Bobbin: Equipped with a large horizontal axis rotary hook, allowing for more thread capacity and fewer interruptions.
  • Adjustable Speed Servo Motor: Offers precise control from stitch-by-stitch to full speed, operating silently and saving up to 90% in energy costs.
  • Durability: Built with an all-metal frame and heavy-duty components for continuous industrial use.
  • Reverse Feed: Includes a large lever for quick back-tacking and seam reinforcement.
  • Max Speed: 2,500 SPM (Stitches Per Minute)
  • Zig-Zag Width: Max 3/8" (9.5mm)
  • Stitch Length: Max 5 s.p.i. (5mm)
  • Stitch Type: 3-Step / 2-Stitch Zig-Zag
  • Clearance Under Foot: 25/64" (10mm)
  • Needle System: 135 x 17
  • Bobbin Type: Large "M" Style
  • Work Space: 10-3/8" (265mm)
  • Bed Size: 7" x 18-7/8" (178mm x 480mm)
  • Marine & Outdoor: Boat covers, sails, awnings, and tarpaulins.
  • Heavy Textiles: Tents, banners, and canvas bags.
  • Elastic & Stretch: Sewing elastic into heavy fabrics or assembling neoprene (wet suits).
  • Upholstery: Leather, vinyl, and synthetic furniture covers.

DOWNLOADS:

146RB Series Spec Sheet (PDF)

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
