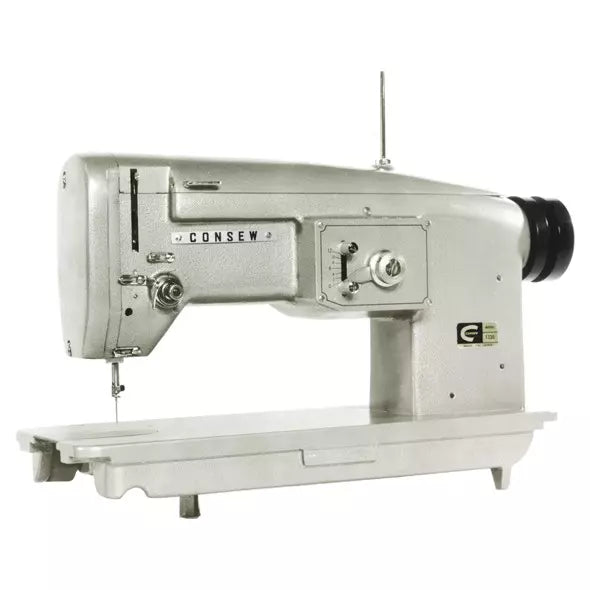

Consew 133A-1 Single Needle Monogramming & Free-Motion Embroidery Industrial Machine

Consew 133A-1 Single Needle Monogramming & Free-Motion Embroidery Industrial Machine

133A-1

With Knee Lever For Zig-Zag Width Control, Manual Feeding In Any Direction, Wide and Narrow Throat Plates for Monogramming and Embroidery, Horizontal Axis Transverse Rotary Hook, Locking position for width adjustment, Extra wide stitch setting

$2,245.95
$2,245.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 133A-1

is a specialized industrial zigzag machine designed for the artistic side of the needle trade. Unlike standard sewing machines that use feed dogs to move fabric, the 133A-1 is a feedless machine. This allows the operator to manually move the material in any direction—360 degrees—to "paint" with thread. Whether you are creating intricate monograms, detailed floral embroidery, or custom patches, this machine provides the high-speed precision and extra-wide zigzag throw required for professional-grade results.

  • Manual Motion Control: Without built-in feeding mechanisms, you have total control to guide the fabric manually in any direction for fluid, organic embroidery lines.
  • Knee-Operated Zig-Zag Width: Features a specialized knee lever that allows you to vary the width of the zigzag stitch while sewing, enabling beautiful tapered effects and dynamic satin stitching.
  • Extra-Wide Stitching: Capable of a massive 12mm zigzag throw, perfect for bold monograms and large-scale embroidery designs.
  • Dual Throat Plates: Includes both wide and narrow throat plates to accommodate different fabric weights and embroidery styles.
  • Locking Width Adjustment: A locking regulator allows you to set a consistent zigzag width for uniform lettering or border work.
  • Horizontal Axis Transverse Rotary Hook: High-speed hook design ensures smooth, skip-free stitching even when moving fabric rapidly in multiple directions.
  • Silent Servo Motor: Paired with a high-torque digital servo motor for pinpoint speed control—essential for intricate monogramming—and near-silent operation.
  • Max Sewing Speed : 2,000 Stitches Per Minute (SPM)
  • Max Zig-Zag Width : 12 mm (15/32")
  • Feeding Mechanism : None (Manual Feed)
  • Needle System : 16 x 95 (DBx1)
  • Needle Bar Stroke : 1-3/8" (35 mm)
  • Hook Type : Horizontal Axis Transverse Rotary Hook
  • Bobbin Type : Class "L" (Pre-wound compatible)
  • Work Space : 10" (255 mm)
  • Stitch Type : 304 (Zig-Zag) / 301 (Lockstitch)

The 133A-1 is the premier tool for:

  • Custom Monogramming: Adding names or initials to shirts, towels, and handkerchiefs.
  • Free-Motion Embroidery: Creating unique artistic designs on apparel, table linens, and wall hangings.
  • Garment Personalization: Decorating pockets on jeans, jackets, or joggers.
  • Specialty Branding: Initialing ties, scarves, and uniforms for high-end boutiques and dry cleaners.
  • Nautical Branding: Embroidery on sail bags and boating windbreakers.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
