Consew 104-10 / 10T Moss/Drop Stich Attaching Tape Braiding Stitch Ray Stitch Industrial Sewing Machine With Table and Servo Motor

Consew 104-10 / 10T Moss/Drop Stich Attaching Tape Braiding Stitch Ray Stitch Industrial Sewing Machine With Table and Servo Motor

104-10

It is equipped with universal feed movement, an adjustable needle plate and an easy hand operated directional control.

$4,499.95
$4,499.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

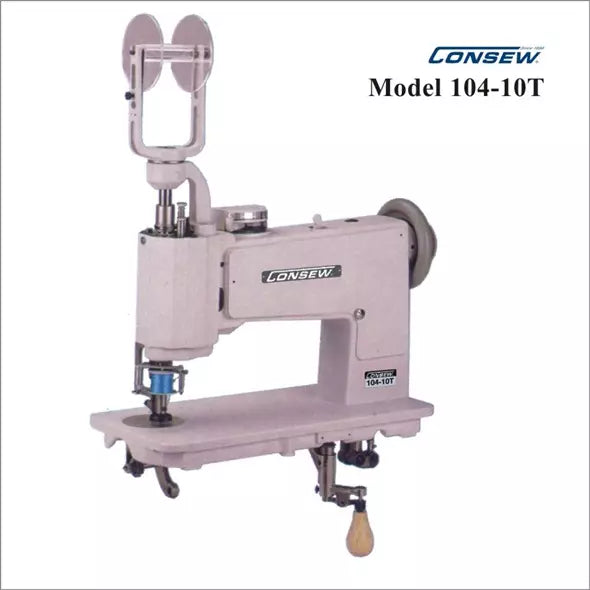

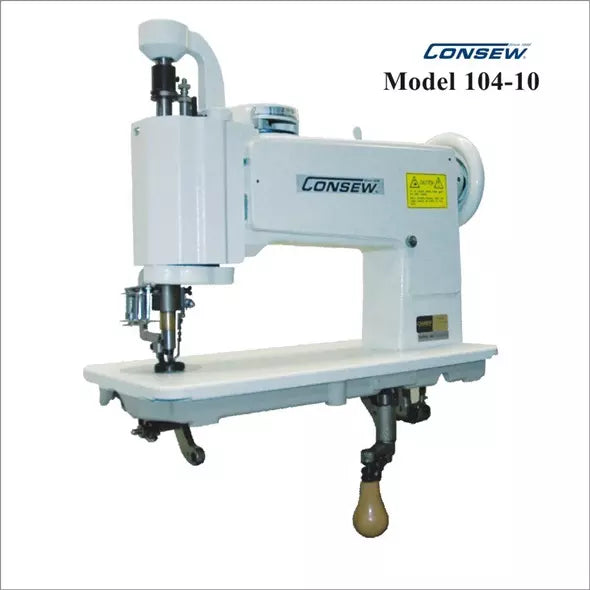

Consew 104-10 / 10T

is a professional-grade, specialized industrial machine for high-level ornamental embroidery. While the basic 104 models focus on standard chainstitching, the 104-10T is engineered for "multi-mode" decorative work. It features a Universal Feed Movement controlled by a manual hand crank under the table, giving the artist 360-degree steering for fluid, free-hand designs.

This model is unique for its ability to produce not just a standard chainstitch, but also the plush, 3D Moss (Pile) Stitch, as well as specialized Braiding, Ray, and Tape Attaching stitches.

  • Universal 360° Feed Movement: Manual directional control allows you to "paint" with thread in any shape, form, or direction without turning the fabric.
  • Multi-Stitch Versatility: Equipped for five distinct decorative styles:
  • Chainstitch (Type 101)
  • Moss Stitch (Drop Stitch) - Creates a textured, carpet-like pile.
  • Braiding Stitch - For applying decorative cords.
  • Ray Stitch - For radiating embroidery patterns.
  • Tape Attaching - For precision application of decorative ribbons or tapes.
  • Instant Stitch Conversion: Features a built-in device to switch between chainstitch and moss stitch without rethreading or removing the work.
  • Adaptable Needle & Nipple System: Adjustable needle plate and interchangeable nipples allow for a vast range of thread types—from delicate silk and cotton to heavy wool and metallic threads.
  • 750W High-Torque Servo Motor: Provides the absolute precision and slow-speed torque required for intricate embroidery while remaining silent and energy-efficient.
  • Stitch Type : Single Thread Chainstitch (101) & Moss Stitch
  • Max Sewing Speed : 800 Stitches Per Minute (SPM)
  • Max Stitch Length : 13/64" (5 mm)
  • Needle Bar Stroke : 9/16" (14 mm)
  • Presser Foot Lift : 9/32" (7 mm)
  • Needle System : 137x1 TR (Chain) / 137x1 SM (Moss)
  • Nipple Sizes : Matches Needle Sizes (#1 to #12)
  • Work Space : 10-1/4" (260 mm)
  • Bed Size : 7-3/4" x 16-3/8" (197 mm x 416 mm)

The 104-10T is the definitive tool for:

  • Boutique Fashion: Braiding and tape attaching on couture dresses and suits.
  • Lettering & Branding: Moss stitch "chenille" style lettering for varsity jackets and uniforms.
  • Home Decor: Ray stitching and ornamental embroidery on drapes, bedspreads, and linens.
  • Commercial Services: Laundries and linen suppliers adding durable personalized names to towels and shop coats.
  • Regalia & Banners: Intricate gold-work and braiding on emblems, flags, and ceremonial attire.

DOWNLOADS

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
