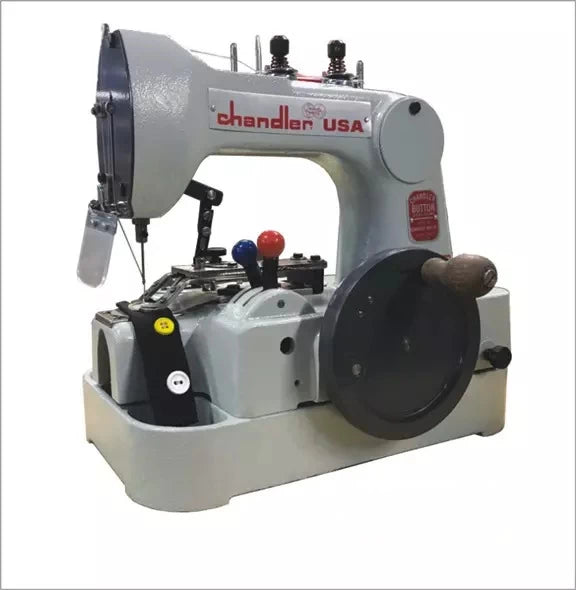

Chandler CM591

is a specialized, manually operated button-attaching machine designed for versatility and portability. Unlike bulky motorized units, this hand-crank model offers surgical precision, allowing the operator to control every stitch by hand. It is the perfect solution for dry cleaners, alteration shops, and hobbyists who need to attach 2-hole or 4-hole buttons with industrial-grade security without the need for a dedicated power source or a large industrial table.

  • Alteration Shops: Quick and secure button replacement for suits, coats, and trousers.
  • Dry Cleaners: Ideal for replacing buttons damaged during the cleaning process.
  • Small Design Studios: Perfect for sampling and small-batch production where a motorized machine is not cost-effective.
  • Mobile Tailoring: Great for on-site repairs at weddings, film sets, or fashion shows.
  • Manual Hand-Crank Power: No electricity required. The hand-crank design provides total control over sewing speed, making it ideal for delicate vintage buttons or thick materials.
  • Universal Button Compatibility: Easily adjusts to accommodate a wide range of button sizes and thicknesses.
  • 2-Hole & 4-Hole Versatility: Features a simple shifting lever to switch between 2-hole and 4-hole button patterns instantly.
  • Single-Thread Chainstitch: Produces a secure, professional stitch that holds buttons firmly while allowing for easy removal if necessary (with the correct pull-thread).
  • Compact & Portable: Its small footprint allows it to be mounted to any workbench or used as a tabletop unit, saving valuable floor space.
  • Heavy-Duty Construction: Built with a rugged metal frame to ensure years of reliable service in a professional environment.
  • Model : Chandler CM591
  • Operation : Manual (Hand-Crank)
  • Stitch Type : Single-Thread Chainstitch
  • Button Types : 2-Hole and 4-Hole
  • Stitches per Cycle : 8, 16, or 32 (Depends on crank rotations)
  • Needle System : TQx1 or TQx7 (Size #14 to #18)
  • Maximum Button Size : Up to 30mm (standard)
  • Dimensions : Compact Desktop Size

DOWNLOADS:

Chandler CM591 - Informational FlyerChandler CM591 - Parts BookChandler CM591 - Instruction Manual

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
