Adjustable K-Leg Table Frame Assembly

Adjustable K-Leg Table Frame Assembly

KLTA3037

Adjustable K-Leg Table Frame Assembly

$249.99
$249.99 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description

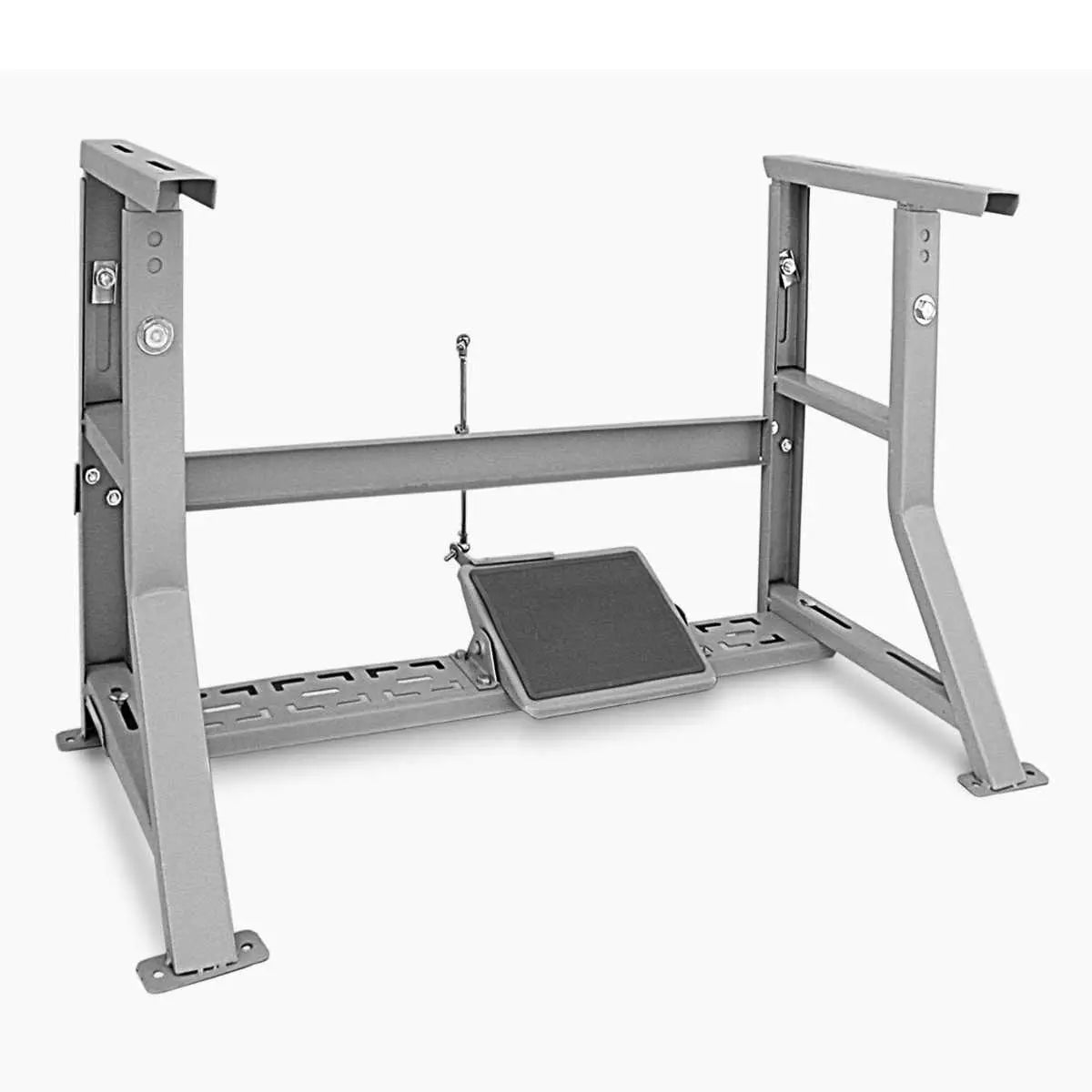

Adjustable K-Leg Table Frame Assembly

This item includes the metal leg frame and a presser foot lifting treadle, the tabletop is not included.

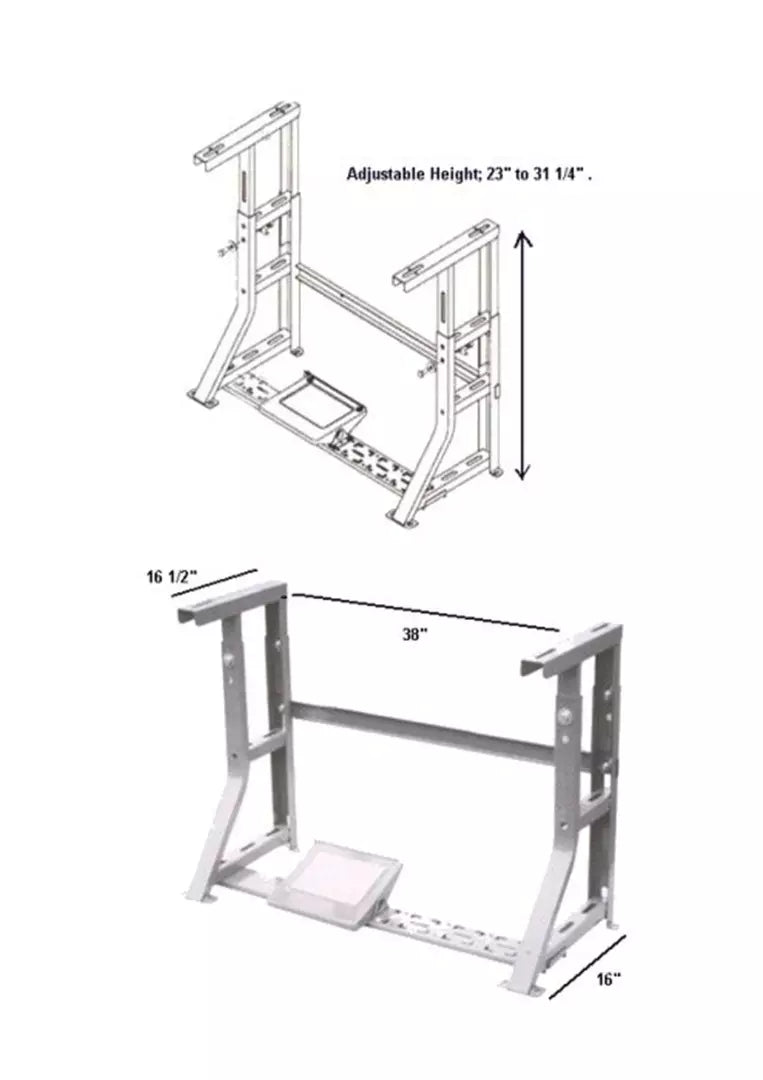

Add a tabletop to this leg assembly to create a solid sewing station for your industrial sewing machine. The leg height is adjustable from 28 to 34 inches with the top installed. The tabletop supports are 16-5/8 inches from front to back and the frame width is 38 inches.

Dimensions:  20"W x 36"L x 31"H

TABLE INCLUDES:

  • (2) K-Legs
  • (1) Back Brace
  • (1) Bottom Brace
  • (1) Pedal
  • (1) Treadle Rod
  • Mounting Brackets, and Hardware

Need a complete table assembly with tabletop and legs?
Check out our Industrial Sewing Machine Table With K-Leg Table Frame Assembly

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
