GoldStar Tool 16" Industrial Pneumatic Swatch & Sample Cutter (GS-40-8A)

GoldStar Tool 16" Industrial Pneumatic Swatch & Sample Cutter (GS-40-8A)

GS-40-8A

16" Pneumatic Swatch Cutter, tailored for high-efficiency textile sampling and industrial production.

$2,499.99
$2,499.99 Market price: $2,995.00 Save 16%
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

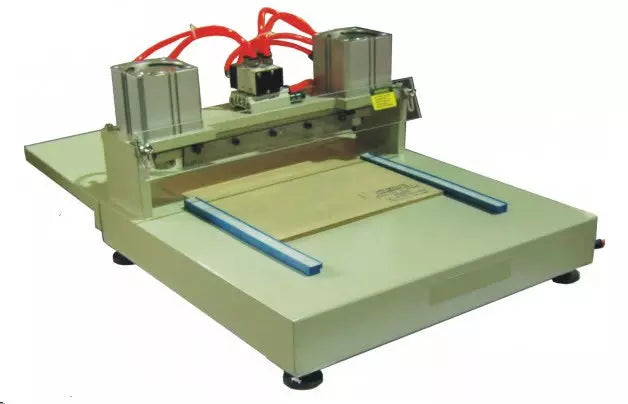

GoldStar Tool 16" Pneumatic Swatch Cutter (GS-40-8A)

is a high-volume, air-powered cutting solution designed for precision and speed. Engineered for textile and apparel manufacturing, it replaces labor-intensive manual shears with a robust dual-cylinder system that delivers clean, professional edges every time. Whether you are cutting fabric, leather, vinyl, or paper, this machine ensures consistent, fray-free results for presentation-quality swatches and sample books.

  • Two-Button Safety Operation: Requires both hands to engage the machine, keeping fingers safely away from the cutting zone.
  • Anti-Tie Down Relays: Ensures the machine only cycles when both safety buttons are pressed simultaneously.
  • Plexiglass Protective Guard: A high-visibility shield provides hand and eye protection without obstructing your view of the material.
  • Textile & Apparel: Rapid production of fabric swatches for catalogs and sample cards.
  • Quality Control: Cutting uniform material samples for laboratory testing and verification.
  • Upholstery & Design: Efficiently sizing leather, vinyl, and heavy-duty upholstery samples.
  • Pattern Making: Quick, clean cutting of material layers for production prototypes
  • Dual Pneumatic Cylinders: Delivers maximum cutting force for effortless, high-speed operation.
  • High-Volume Stacking: A 2-inch knife height allows you to cut through thick material stacks in a single stroke.
  • Professional Finish: Eliminates the jagged edges and fraying common with manual scissors or lower-powered machines.
  • Precision Ruled Work Area: Includes a built-in guide for accurate measurements and repeatable cuts.
  • Compact Industrial Build: Designed to mount easily on any sturdy tabletop for seamless workflow integration.
  • Model: GS-40-8A
  • Cutting Width: 16 inches (40 cm)
  • Max Stack Height: 2 inches
  • Power Requirements: 110V AC
  • Maximum Air Pressure: 100 PSI
  • Blade Options: Compatible with 16" Pinking (zigzag) or Straight Blades
  • Dimensions: 36" x 24" x 16" (91.5 x 61 x 40.6 cm)
  • Required Equipment: Requires an external air compressor (not included)

DOWNLOADS:

12" Pneumatic Swatch Cutter - Assembly

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Goldstart 12" Pneumatic Fabric,Textile Swatch Cutter - Goldstartool

Video for GS30-8A
