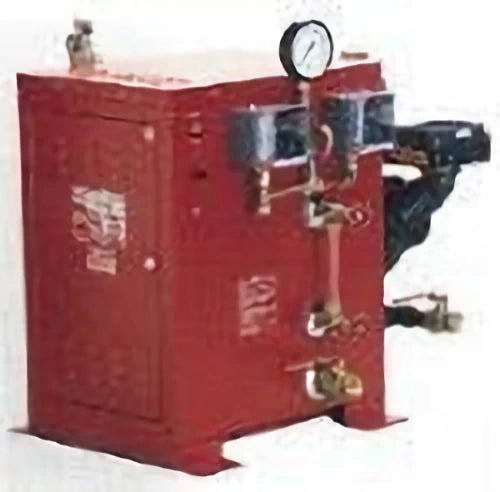

12KW – 72KW Automatic Industrial Electric Steam Boiler High-Pressure, Fully Automatic Steam Solution (208V – 480V)

12KW – 72KW Automatic Industrial Electric Steam Boiler High-Pressure, Fully Automatic Steam Solution (208V – 480V)

NW-PSE_24-STM

Configuration: Boiler Unit Only (Requires Table/Setup for Operation)

$7,898.99
$7,898.99 Market price:
Sale Sold out
Choose Watt
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application

12KW Thru 72KW

is designed for heavy-duty commercial and industrial use, providing a continuous, reliable source of high-quality steam. Whether you are running a garment factory, a commercial kitchen, or a laboratory, this boiler delivers high-pressure performance with minimal maintenance.

Featuring a compact footprint, this series is built with a steel pressure vessel and includes a comprehensive suite of automatic controls. The integrated blow-down valve makes routine maintenance simple by allowing for easy purging of corrosive materials and mineral buildup, ensuring a long operational lifespan.



     Built-In Safety Systems

    • Automatic Shut-Off: Prevents damage by cutting power if water levels drop too low.
    • Safety Relief Valve: Proactively manages overpressure to ensure operator safety.
    • Water Gauge Glass: Provides a clear, real-time visual of the water level within the tank.
    • Pressure Control: Maintains a steady operating pressure of 80 psi with a maximum safety limit of 100 psi.
    • Garment Industry: Central steam source for multiple industrial irons and finishing tables.
    • Food & Beverage: Sterilization, jacketed kettle heating, and cleaning.
    • Laboratories: High-pressure steam for research and testing equipment.
    • Commercial Laundry: Powering steam presses and large-scale garment steamers.
    • Fully Automatic Operation: Meticulously designed for hassle-free use, managing water levels and pressure without constant manual intervention.
    • Rapid Steam Generation: Engineered to deliver unlimited hours of high-quality steam specifically where high-pressure output is required.
    • Integrated Maintenance Valve: Includes a convenient blow-down valve to effortlessly purge water and remove corrosive materials.
    • Multi-Voltage Compatibility: Supports a wide range of electrical configurations from 208V to 480V (Single or Three Phase depending on KW).
    • Robust Steel Construction: Built with a high-durability steel boiler vessel for industrial longevity.
    • Small Footprint: Compact design allows for installation in facilities where floor space is limited.
    • Electricity:
      12 KW: Single Phase/50 AMP; Three Phase/29 AMP; 1.2 HP
      18 KW: Single Phase/75 AMP; Three Phase/44 AMP; 1.8 HP
      24 KW: Single Phase/100 AMP; Three Phase/58 AMP; 2.4 HP
      36 KW: Single Phase; Three Phase/44 AMP; 3.6 HP
      48 KW: Single Phase; Three Phase/58 AMP; 6.4 HP
      60 KW: Single Phase; Three Phase/73 AMP; 8.0 HP
      72 KW: Single Phase; Three Phase/87 AMP; 9.7 HP
    • Steam Output Per Hour:
      12 KW: 41 Lbs
      18 KW: 62 Lbs
      24 KW: 83 Lbs
      36 KW: 124 Lbs
      48 KW: 166 Lbs
      60 KW: 166 Lbs
      72 KW: 166 Lbs
    • Net Weight (Without Irons):
      12 KW: 242 Lbs
      18 KW: 242 Lbs
      24 KW: 263 Lbs
      36 KW: 288 Lbs
      48 KW: 444 Lbs
      60 KW: 444 Lbs
      72 KW: 444 Lbs
    • Product Dimensions:
      12 KW: 22” x 29” x 31”
      18 KW: 22” x 29” x 31”
      24 KW: 22” x 29” x 31”
      36 KW: 22” x 29” x 39”
      48 KW: 26” x 31” x 45”
      60 KW: 26” x 31” x 45”
      72 KW: 26” x 31” x 45”
    • Construction:
      Boiler: Steel
    • Operating Pressure:
      Normal: 80 psi
      Max: 100 psi
