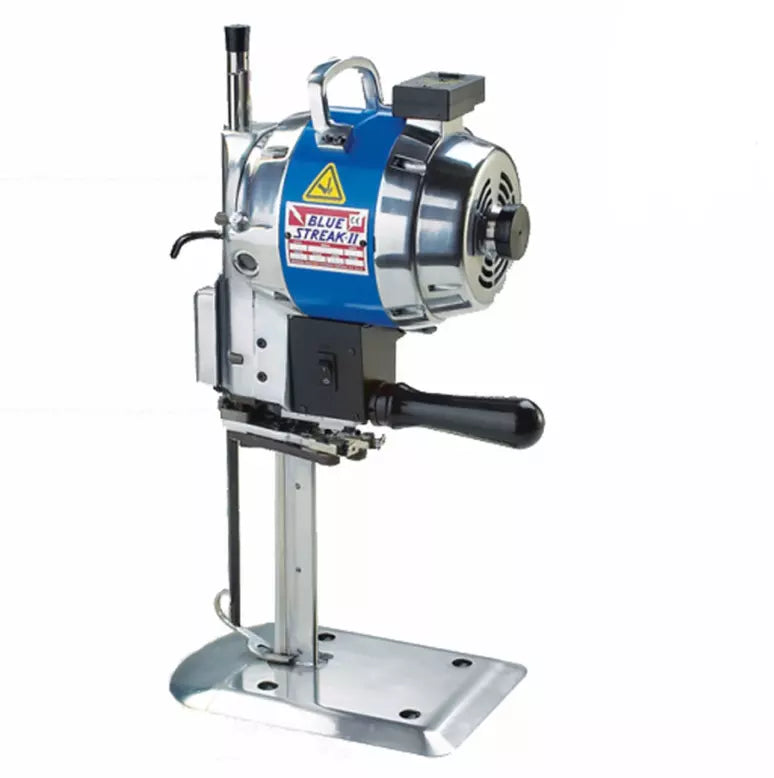

Blue Streak II® Model 629 Dual Speed Cutting Machine 110 Volt - 1 Phase - 60 Cycle

Blue Streak II® Model 629 Dual Speed Cutting Machine 110 Volt - 1 Phase - 60 Cycle

629_DS

Blue Streak II® Model 629 Dual Speed Cutting Machine 110 Volt - 1 Phase - 60 Cycle

$3,049.99
$3,049.99 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description

Blue Streak II® Model 629 Dual Speed Cutting Machine 110 Volt - 1 Phase - 60 Cycle

Style: 110V1P-DS1-1/2S

With versatility unmatched by any other straight knife, the Blue Streak II® is the obvious choice when one cloth cutting machine is required to perform many tasks.

FEATURES:

  • Power to weight ratio offers easy handling and maneuvering, even for the tightest radius
  • Low-profile baseplate and narrow silhouette standard make cutting of intricate patterns and tight turns simple
  • Perfect fit and continuous running with cross heads, crank and knife slides that are machined to a tolerance within .0005″(0.0013cm)
  • Simple handling of the machine due to its low center of gravity
  • Low maintenance requiring only daily lubricating with the easy-to-use One Shot single-reservoir oiling system

SPECIFICATIONS:

  • Motors:  110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz 380V, 3ph, 50Hz Standard: Single Speed Optional: Dual Speed
  • Horsepower:  .65hp, 1ph .93hp, 3ph
  • Weight:  34 lbs. (15.4kg)
  • Blades:  Standard: Carbon Steel Optional: High-Speed Steel, PTFE Coated, Wave Edge, Wave Groove, Angled Tip
  • Belts:  Standard: Medium Grit Optional: Fine, Coarse, Rough
  • Options:  Micro Fog, Plastic Master, Auto Stop Note: Autostop, Micro Fog and Plastic Master are only available in 6 in. and 8 in.
  • Stroke Sizes:  1.125 in. (2.86cm) 1.25 in. (3.18cm) 1.5 in. (3.81cm) 1.75 in. (4.45cm)
  • Blade Sizes:  5 in. (12.7cm) 6 in (15.2 cm) 7 in. (17.7 cm) 8 in. (20.3 cm) 9 in. (22.8 cm) 10 in. (25.4 cm) 11.5 in. (29.2 cm) 13 in. (33 cm)
  • Cutting Capacity:  3.5 in (8.9cm) 4.5 in. (11.4cm) 5.5 in (13.9cm) 6.5 in (16.5cm) 7.5 in. (19.1cm) 8.5 in. (21.5cm) 10 in. (25.4cm) 11.5 in. (29.2cm)

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
